HGRID_2D Class Reference

This adds on the hierarchical grid code for 2D problems. More...

#include <HGRID_2D.h>

Inheritance diagram for HGRID_2D:

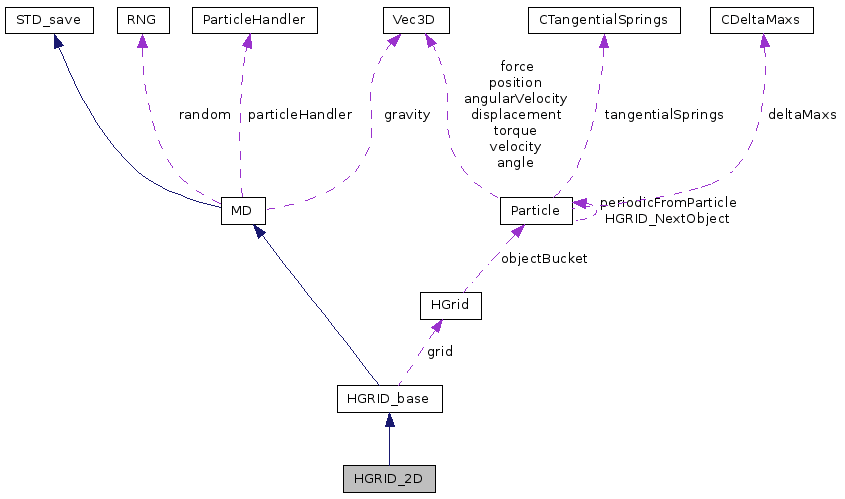

Collaboration diagram for HGRID_2D:

List of all members.

Public Member Functions
	HGRID_2D ()
	This is the default constructor. All it does is set senible defaults.
	HGRID_2D (MD &other)
	Copy-constructor for creates an HGRID problem from an existing MD problem.
	HGRID_2D (HGRID_base &other)
void	constructor ()
	This is the actually constructor it is called do both constructors above.
Protected Member Functions
void	HGRID_UpdateParticleInHgrid (Particle *obj)
	This adds a partcile to the Grid, called in the grid setup routies.
void	HGRID_RemoveParticleFromHgrid (Particle *obj)
void	CheckCell (Cell cell, Particle *obj, HGrid *grid)
	Check collisions for a general cell.
void	CheckCell_current (Cell cell, HGrid *grid)
	Checks for a collision in the particles own cell.
void	CheckObjAgainstGrid (HGrid *grid, Particle *obj)
	Check if an Particle has a collision in the grid; avoids multiple checks.
void	CheckObjAgainstWholeGrid (HGrid *grid, Particle *obj)
	Check if an Particle has a collision in the grid.
bool	TestCell (Cell cell, Particle *obj, HGrid *grid)
	Tests obj against all particles in cell similar to CheckCell, but links to TestObject instead of compute_internal_forces.
bool	TestObjAgainstGrid (HGrid *grid, Particle *obj)
	Tests obj against all neighbouring particles similar to CheckObjAgainstGrid, but links to TestCell instead of CheckCell.

---

Detailed Description

This adds on the hierarchical grid code for 2D problems.

---

Constructor & Destructor Documentation

HGRID_2D::HGRID_2D

(

)

[inline]

This is the default constructor. All it does is set senible defaults.

References constructor().

        {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "HGRID_2D() finished"<<endl;
                #endif
        }

HGRID_2D::HGRID_2D

(

MD &

other

)

[inline]

Copy-constructor for creates an HGRID problem from an existing MD problem.

References constructor().

                            : MD(other), HGRID_base(other)
        {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "HGRID_2D(MD& other) finished" << endl;
                #endif
        }

HGRID_2D::HGRID_2D

(

HGRID_base &

other

)

[inline]

References constructor().

                                    : MD(other), HGRID_base(other)
        {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "HGRID_2D(HGRID_base& other) finished" << endl;
                #endif
        }

---

Member Function Documentation

void HGRID_2D::CheckCell	(	Cell	cell,
		Particle *	obj,
		HGrid *	grid
	)		[protected]

Check collisions for a general cell.

Check for collisions with a general cell.

References MD::compute_internal_forces(), HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_Level(), Particle::get_HGRID_NextObject(), Particle::get_HGRID_x(), Particle::get_HGRID_y(), Cell::l, HGrid::objectBucket, Cell::x, and Cell::y.

Referenced by CheckObjAgainstGrid().

{
        int bucket = grid->ComputeHashBucketIndex(cell);

    if ((obj->get_HGRID_x() == cell.x) && (obj->get_HGRID_y() == cell.y) && (obj->get_HGRID_Level() == cell.l)) { return; }

        // Loop through all objects in the bucket to find nearby objects
        Particle *p = grid->objectBucket[bucket];

        while (p!=NULL)
        {
                if ((p->get_HGRID_x() == cell.x) && (p->get_HGRID_y() == cell.y) && (p->get_HGRID_Level() == cell.l))
                {
                        compute_internal_forces(obj,p);
                }
                p = p->get_HGRID_NextObject();
        }
}

void HGRID_2D::CheckCell_current	(	Cell	cell,
		HGrid *	grid
	)		[protected]

Checks for a collision in the particles own cell.

Checks for collision in the particles own cell.

References HGrid::bucketIsChecked, MD::compute_internal_forces(), HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_NextObject(), and HGrid::objectBucket.

Referenced by CheckObjAgainstGrid().

{
        int bucket = grid->ComputeHashBucketIndex(cell);
        if (grid->bucketIsChecked[bucket]) { return; }
        Particle* p1 = grid->objectBucket[bucket];

        while (p1!=NULL)
        {
                Particle* p2 = p1->get_HGRID_NextObject();
                while (p2!=NULL)
                {
                        compute_internal_forces(p1,p2);
                        p2 = p2->get_HGRID_NextObject();
                }
                p1 = p1->get_HGRID_NextObject();
        }
        grid->bucketIsChecked[bucket] = true;
}

void HGRID_2D::CheckObjAgainstGrid	(	HGrid *	grid,
		Particle *	obj
	)		[protected, virtual]

Check if an Particle has a collision in the grid; avoids multiple checks.

Test collisions between object and all objects in hgrid.

Implements HGRID_base.

References CheckCell(), CheckCell_current(), Particle::get_HGRID_Level(), Particle::get_HGRID_x(), Particle::get_HGRID_y(), Particle::get_Position(), HGrid::HGRID_MAX_LEVELS, HGrid::inv_size, HGrid::occupiedLevelsMask, Vec3D::X, and Vec3D::Y.

{
        int startLevel          = obj->get_HGRID_Level();
        int occupiedLevelsMask  = grid->occupiedLevelsMask >> obj->get_HGRID_Level();

        int x, y;
        Mdouble inv_size;

        for (int level = startLevel; level < grid->HGRID_MAX_LEVELS; occupiedLevelsMask >>= 1, level++)
        {
                // If no objects in rest of grid, stop now
                if (occupiedLevelsMask == 0) break;

                // If no objects at this level, go on to the next level
                if ((occupiedLevelsMask & 1) == 0) continue;

                if (level == startLevel)
                {
                        x = obj->get_HGRID_x();
                        y = obj->get_HGRID_y();

                        CheckCell_current(Cell(x, y, 0, level), grid);

                        CheckCell(Cell(x+1, y  , 0, level), obj, grid);
                        CheckCell(Cell(x+1, y+1, 0, level), obj, grid);
                        CheckCell(Cell(x  , y+1, 0, level), obj, grid);

                        CheckCell(Cell(x+1, y-1, 0, level), obj, grid);
                }
                else
                {
                        inv_size = grid->inv_size[level];
                        x = (int)floor(obj->get_Position().X * inv_size);
                        y = (int)floor(obj->get_Position().Y * inv_size);

                        CheckCell(Cell(x, y, 0, level), obj, grid);
                        CheckCell(Cell(x+1, y, 0, level), obj, grid);
                        CheckCell(Cell(x+1, y+1, 0, level), obj, grid);
                        CheckCell(Cell(x, y+1, 0, level), obj, grid);

                        CheckCell(Cell(x, y-1, 0, level), obj, grid);
                        CheckCell(Cell(x+1, y-1, 0, level), obj, grid);

                        CheckCell(Cell(x-1, y, 0, level), obj, grid);
                        CheckCell(Cell(x-1, y+1, 0, level), obj, grid);
                        CheckCell(Cell(x-1, y-1, 0, level), obj, grid);

                }
        }
}

void HGRID_2D::CheckObjAgainstWholeGrid	(	HGrid *	grid,
		Particle *	obj
	)		[protected]

Check if an Particle has a collision in the grid.

void HGRID_2D::constructor

(

)

[inline]

This is the actually constructor it is called do both constructors above.

Reimplemented from HGRID_base.

Referenced by HGRID_2D().

{}

void HGRID_2D::HGRID_RemoveParticleFromHgrid

(

Particle *

obj

)

[protected]

References HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_Level(), Particle::get_HGRID_NextObject(), Particle::get_HGRID_x(), Particle::get_HGRID_y(), HGRID_base::grid, HGrid::objectBucket, and Particle::set_HGRID_NextObject().

{
        Cell cell(obj->get_HGRID_x(),obj->get_HGRID_y(), 0, obj->get_HGRID_Level());
        int bucket = grid->ComputeHashBucketIndex(cell);

        Particle* prevObj=grid->objectBucket[bucket];
        if(prevObj==obj)
                grid->objectBucket[bucket]=obj->get_HGRID_NextObject();
        else
        {
                while((prevObj!=NULL)&&(prevObj->get_HGRID_NextObject()!=obj))
                        prevObj=prevObj->get_HGRID_NextObject();
                if(prevObj!=NULL)
                        prevObj->set_HGRID_NextObject(obj->get_HGRID_NextObject());
        }
}

void HGRID_2D::HGRID_UpdateParticleInHgrid

(

Particle *

obj

)

[protected]

This adds a partcile to the Grid, called in the grid setup routies.

Add object to grid square, and remember cell and level numbers, treating level as a third dimension coordinate.

References HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_Level(), Particle::get_Position(), HGRID_base::grid, HGrid::inv_size, HGrid::objectBucket, Particle::set_HGRID_NextObject(), Particle::set_HGRID_x(), Particle::set_HGRID_y(), Vec3D::X, Cell::x, Vec3D::Y, and Cell::y.

{
        int level = obj->get_HGRID_Level();
        Mdouble inv_size = grid->inv_size[level];

        Cell cell((int)floor(obj->get_Position().X * inv_size), (int)floor(obj->get_Position().Y * inv_size), 0, level);
        int bucket = grid->ComputeHashBucketIndex(cell);

        obj->set_HGRID_NextObject(grid->objectBucket[bucket]);
        grid->objectBucket[bucket] = obj;

        obj->set_HGRID_x(cell.x);
        obj->set_HGRID_y(cell.y);
}

bool HGRID_2D::TestCell	(	Cell	cell,
		Particle *	obj,
		HGrid *	grid
	)		[protected]

Tests obj against all particles in cell similar to CheckCell, but links to TestObject instead of compute_internal_forces.

References HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_Level(), Particle::get_HGRID_NextObject(), Particle::get_HGRID_x(), Particle::get_HGRID_y(), Cell::l, HGrid::objectBucket, HGRID_base::TestObject(), Cell::x, and Cell::y.

Referenced by TestObjAgainstGrid().

{
        bool Test = true;

        // Loop through all objects in the bucket to find nearby objects
        int bucket = grid->ComputeHashBucketIndex(cell);
        Particle *p = grid->objectBucket[bucket];

        while (Test && p!=NULL)
        {
                if ((p->get_HGRID_x() == cell.x) && (p->get_HGRID_y() == cell.y) && (p->get_HGRID_Level() == cell.l))
                {
                        Test = Test && TestObject(obj,p);
                }
                p = p->get_HGRID_NextObject();
        }

        return Test;
}

bool HGRID_2D::TestObjAgainstGrid	(	HGrid *	grid,
		Particle *	obj
	)		[protected]

Tests obj against all neighbouring particles similar to CheckObjAgainstGrid, but links to TestCell instead of CheckCell.

References Particle::get_Position(), HGrid::HGRID_MAX_LEVELS, HGrid::inv_size, HGrid::occupiedLevelsMask, TestCell(), Vec3D::X, and Vec3D::Y.

{

        bool Test = true;

        int x, y;
        Mdouble inv_size;
        int occupiedLevelsMask = grid->occupiedLevelsMask;

        for (int level = 0; level < grid->HGRID_MAX_LEVELS && Test; occupiedLevelsMask >>= 1, level++)
        {
                // If no objects in rest of grid, stop now
                if (occupiedLevelsMask == 0) break;

                // If no objects at this level, go on to the next level
                if ((occupiedLevelsMask & 1) == 0) continue;

                // Treat level as a third dimension coordinate
                inv_size = grid->inv_size[level];

                x = (int)floor(obj->get_Position().X * inv_size);
                y = (int)floor(obj->get_Position().Y * inv_size);

                Test = Test
                                && TestCell(Cell(x  , y  , 0, level), obj, grid)
                                && TestCell(Cell(x  , y-1, 0, level), obj, grid)
                                && TestCell(Cell(x  , y+1, 0, level), obj, grid)
                                && TestCell(Cell(x-1, y  , 0, level), obj, grid)
                                && TestCell(Cell(x+1, y  , 0, level), obj, grid)
                                && TestCell(Cell(x-1, y-1, 0, level), obj, grid)
                                && TestCell(Cell(x-1, y+1, 0, level), obj, grid)
                                && TestCell(Cell(x+1, y-1, 0, level), obj, grid)
                                && TestCell(Cell(x+1, y+1, 0, level), obj, grid);
        } //end for level

        return Test;
}

---

The documentation for this class was generated from the following files:

• HGRID_2D.h
• HGRID_2D.cc
