This is a particle class. More...

#include <CParticle.h>

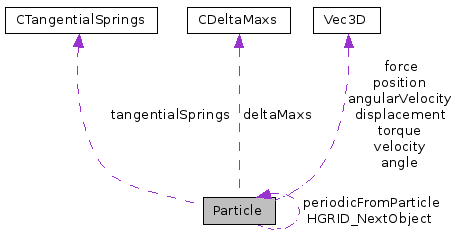

Collaboration diagram for Particle:

Public Member Functions
	Particle ()
	Basic Particle contructors, creates an Particle at (0,0,0) with radius, mass and inertia equal to 1.
	Particle (const Particle &p)
	Particle copy contstructor, which accepts as input a reference to a Particle. It creates a copy of this Particle and all it's information. Usually it is better to use the copy() function for polymorfism.
virtual	~Particle ()
	Particle destructor, needs to be implemented and checked if it removes tangential spring information.
virtual Particle *	copy ()
	Particle copy method. It calls to copy contrustor of this Particle, usefull for polymorfism.
Mdouble	get_Volume (vector< CSpecies > &Species) const
	Get Particle volume function, which required a reference to the Species vector. It returns the volume of the Particle.
void	fixParticle ()
	Fix Particle function. It fixes a Particle by setting its inverse mass and inertia and velocities to zero.
bool	isFixed ()
	Is fixed Particle function. It returns wether a Particle is fixed or not, by cheking its inverse Mass.
void	unfix (vector< CSpecies > &Species)
	Unfix Particle function, which required a reference to the Species vector. It un fixes a Particle by compyting the Particles mass and inertia.
void	compute_particle_mass (vector< CSpecies > &Species)
	Compute Particle mass function, which required a reference to the Species vector. It copmuters the Particles mass, Inertia and the inverses.
void	print (std::ostream &os)
	Particle print function, which accepts an os stringstream as input. It prints human readable Particle information to the stringstream.
void	print_HGRID (std::ostream &os)
int	get_HGRID_Level ()
Particle *	get_HGRID_NextObject ()
int	get_HGRID_x ()
int	get_HGRID_y ()
int	get_HGRID_z ()
int	get_Index ()
Mdouble	get_Inertia () const
Mdouble	get_InvInertia () const
Mdouble	get_InvMass () const
Mdouble	get_KineticEnergy ()
Mdouble	get_Mass () const
Particle *	get_PeriodicFromParticle ()
Vec3D &	get_Position ()
Mdouble	get_Radius ()
int	get_Species ()
int	get_IndSpecies ()
Vec3D &	get_Velocity ()
Vec3D &	get_Angle ()
Vec3D &	get_AngularVelocity ()
Vec3D &	get_Force ()
Vec3D &	get_Torque ()
Vec3D &	get_Displacement ()
void	set_inertia (Mdouble _new)
void	set_periodicFromParticle (Particle *_new)
void	set_species (Mdouble _new)
void	set_Index (int _new)
void	set_HGRID_x (int _new)
void	set_HGRID_y (int _new)
void	set_HGRID_z (int _new)
void	set_HGRID_Level (int _new)
void	set_HGRID_NextObject (Particle *_new)
void	set_Radius (Mdouble _new)
void	set_IndSpecies (int _new)
void	set_Mass (Mdouble _new)
void	set_Velocity (Vec3D _new)
void	set_Position (Vec3D _new)
void	set_Angle (Vec3D _new)
void	set_AngularVelocity (Vec3D _new)
void	set_Force (Vec3D _new)
void	set_Torque (Vec3D _new)
void	move (Vec3D _new)
void	accelerate (Vec3D _new)
void	rotate (Vec3D _new)
void	angularAccelerate (Vec3D _new)
void	add_Force (Vec3D _new)
void	add_Torque (Vec3D _new)
CTangentialSprings &	get_TangentialSprings ()
CDeltaMaxs &	get_DeltaMaxs ()
Private Attributes
int	HGRID_x
	Hgrid attributes.
int	HGRID_y
int	HGRID_z
int	HGRID_Level
	Cell position in the grid.
Particle *	HGRID_NextObject
	Grid level for the object.
int	index
	Pointer to the next Particle in the same HGrid cell.
Mdouble	mass
	Index of the Particle in the ParticleHandler, used for outputting fstat data.
Mdouble	invMass
	Particle mass.
Mdouble	inertia
	Inverse Paritcle mass (for computation optimization)
Mdouble	invInertia
	Particle inertia.
Mdouble	radius
	Inverse Particle inverse inertia (for computation optimization)
Particle *	periodicFromParticle
	Particle radius.
int	indSpecies
	Pointer to originating Particle.
Vec3D	angle
	Index of the Species of this Particle.
Vec3D	angularVelocity
	Current angular position.
Vec3D	position
	Current angular velocity.
Vec3D	velocity
	Current particle position.
Vec3D	force
	Current particle velocity.
Vec3D	torque
	Interaction force.
Vec3D	displacement
	Torque.
CTangentialSprings	tangentialSprings
	Displacement (only used in StatisticsVector, StatisticsPoint)
CDeltaMaxs	deltaMaxs
	Tangential spring information.
Friends
std::ostream &	operator<< (std::ostream &os, const Particle &p)
	Particle << opperator, writes Particle information to the stringstream.
std::istream &	operator>> (std::istream &is, Particle &p)
	Particle >> opperator, reads Particle information from the stringstream.

Detailed Description

This is a particle class.

This code is orginally from Vitaliy. It also comes with a required Vector class Modifications, 20:8/9:2009 Included the Vector class here rather that at the level above and hence, added inclusion guards

Constructor & Destructor Documentation

Particle::Particle ( ) [inline]

Basic Particle contructors, creates an Particle at (0,0,0) with radius, mass and inertia equal to 1.

                   {
                position.set_zero();
                velocity.set_zero();
                displacement.set_zero();
                force.set_zero();
                radius=1.0;
                angle.set_zero();
                angularVelocity.set_zero();
                torque.set_zero();
                mass = invMass = 1.0;
                inertia = invInertia = 1.0;
                HGRID_NextObject=NULL;

                tangentialSprings.reset();
                deltaMaxs.reset();
                indSpecies = 0;
                periodicFromParticle=NULL;

                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "Particle() finished"<<endl;
                #endif
        }

Particle::Particle ( const Particle & p ) [inline]

Particle copy contstructor, which accepts as input a reference to a Particle. It creates a copy of this Particle and all it's information. Usually it is better to use the copy() function for polymorfism.

References angle, angularVelocity, deltaMaxs, displacement, force, get_Inertia(), get_InvInertia(), get_InvMass(), get_Mass(), HGRID_Level, HGRID_NextObject, HGRID_x, HGRID_y, HGRID_z, indSpecies, periodicFromParticle, position, radius, tangentialSprings, torque, and velocity.

                                    {
                position = p.position;
                velocity = p.velocity;
                displacement = p.displacement;
                force = p.force;
                radius = p.radius;
                angle = p.angle;
                angularVelocity = p.angularVelocity;
                torque = p.torque;
                mass = p.get_Mass();
                invMass = p.get_InvMass();
                inertia = p.get_Inertia();
                invInertia = p.get_InvInertia();

                HGRID_NextObject = p.HGRID_NextObject;
                HGRID_x = p.HGRID_x;
                HGRID_y = p.HGRID_y;
                HGRID_z = p.HGRID_z;
                HGRID_Level = p.HGRID_Level;

                tangentialSprings = p.tangentialSprings;
                deltaMaxs = p.deltaMaxs;

                indSpecies = p.indSpecies;
                periodicFromParticle=p.periodicFromParticle;

                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "Particle(Particle &p) finished"<<endl;
                #endif
        }

virtual Particle::~Particle ( ) [inline, virtual]

Particle destructor, needs to be implemented and checked if it removes tangential spring information.

        {
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "virtual ~Particle finished"<<endl;
                #endif
        }

Member Function Documentation

void Particle::accelerate ( Vec3D _new ) [inline]

Referenced by MD::do_integration_after_force_computation(), and MD::do_integration_before_force_computation().

{velocity+=_new;}

void Particle::add_Force ( Vec3D _new ) [inline]

Referenced by MD::compute_external_forces(), MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), and MD::compute_walls().

{force+=_new;}

void Particle::add_Torque ( Vec3D _new ) [inline]

Referenced by MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), and MD::compute_walls().

{torque+=_new;}

void Particle::angularAccelerate ( Vec3D _new ) [inline]

Referenced by MD::do_integration_after_force_computation(), and MD::do_integration_before_force_computation().

{angularVelocity+=_new;}

void Particle::compute_particle_mass ( vector< CSpecies > & Species ) [inline]

Compute Particle mass function, which required a reference to the Species vector. It copmuters the Particles mass, Inertia and the inverses.

References constants::pi, and sqr.

Referenced by Chute::create_inflow_particle(), ChuteWithHopper::create_inflow_particle(), Chute::get_collision_time(), Chute::get_LargestParticle(), MD::get_Mass_from_Radius(), Chute::get_restitution_coefficient(), Chute::get_SmallestParticle(), Chute::initialize_inflow_particle(), MD::read(), MD::read_v1(), MD::read_v2(), Chute::set_collision_time_and_restitution_coefficient(), and ChuteBottom::setup_particles_initial_conditions().

                                                              {
                if (!isFixed()) {
                        switch(Species[indSpecies].dim_particle)
                        {
                                case 3 :
                                {
                                        set_Mass(4.0/3.0 * constants::pi * radius * radius * radius * Species[indSpecies].rho);
                                        set_inertia(.4 * get_Mass() * sqr(radius));
                                        break;
                                }
                                case 2 :
                                {
                                        set_Mass(constants::pi * radius * radius * Species[indSpecies].rho);
                                        set_inertia(.5 * get_Mass() * sqr(radius));
                                        break;
                                }
                                case 1 :
                                {
                                        set_Mass(2.0 * radius * Species[indSpecies].rho);
                                        set_inertia(0.0);
                                        break;
                                }
                                default :
                                {
                                        cerr<<"In compute_particle_mass(vector<CSpecies>& Species) the dimension of the particle is not set"<<endl;
                                        exit(-1);
                                }
                        }
                }
        }

virtual Particle* Particle::copy ( ) [inline, virtual]

Particle copy method. It calls to copy contrustor of this Particle, usefull for polymorfism.

Referenced by ParticleHandler::copyAndAddParticle().

        {
                return new Particle(*this);
        }

void Particle::fixParticle ( ) [inline]

Fix Particle function. It fixes a Particle by setting its inverse mass and inertia and velocities to zero.

Referenced by MD::read_next_from_data_file().

                          {
                mass=1e20; invMass=0.0; velocity.set_zero(); inertia=1e20; invInertia=0.0; angularVelocity.set_zero();
#ifdef USE_SIMPLE_VERLET_INTEGRATION
                position = PrevPosition;
#endif
        }

Vec3D& Particle::get_Angle ( ) [inline]

Referenced by Chute::initialize_inflow_particle().

{return angle;}

Vec3D& Particle::get_AngularVelocity ( ) [inline]

Referenced by MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), MD::compute_walls(), MD::do_integration_after_force_computation(), MD::do_integration_before_force_computation(), and Chute::initialize_inflow_particle().

{return angularVelocity;}

CDeltaMaxs& Particle::get_DeltaMaxs ( ) [inline]

Referenced by MD::compute_plastic_internal_forces().

{return deltaMaxs;}

Vec3D& Particle::get_Displacement ( ) [inline]

{return displacement;}

Vec3D& Particle::get_Force ( ) [inline]

Referenced by MD::do_integration_after_force_computation(), and MD::do_integration_before_force_computation().

{return force;}

int Particle::get_HGRID_Level ( ) [inline]

Referenced by HGRID_2D::CheckCell(), HGRID_3D::CheckCell(), HGRID_2D::CheckObjAgainstGrid(), HGRID_3D::CheckObjAgainstGrid(), HGRID_2D::HGRID_RemoveParticleFromHgrid(), HGRID_3D::HGRID_RemoveParticleFromHgrid(), HGRID_base::HGRID_update_move(), HGRID_2D::HGRID_UpdateParticleInHgrid(), HGRID_3D::HGRID_UpdateParticleInHgrid(), HGRID_2D::TestCell(), and HGRID_3D::TestCell().

{return HGRID_Level;}

Particle* Particle::get_HGRID_NextObject ( ) [inline]

Referenced by HGRID_2D::CheckCell(), HGRID_3D::CheckCell(), HGRID_2D::CheckCell_current(), HGRID_3D::CheckCell_current(), HGRID_2D::HGRID_RemoveParticleFromHgrid(), HGRID_3D::HGRID_RemoveParticleFromHgrid(), Chute::IsInsertable(), HGRID_2D::TestCell(), and HGRID_3D::TestCell().

{return HGRID_NextObject;}

int Particle::get_HGRID_x ( ) [inline]

Referenced by HGRID_2D::CheckCell(), HGRID_3D::CheckCell(), HGRID_2D::CheckObjAgainstGrid(), HGRID_3D::CheckObjAgainstGrid(), HGRID_2D::HGRID_RemoveParticleFromHgrid(), HGRID_3D::HGRID_RemoveParticleFromHgrid(), HGRID_2D::TestCell(), and HGRID_3D::TestCell().

{return HGRID_x;}

int Particle::get_HGRID_y ( ) [inline]

Referenced by HGRID_2D::CheckCell(), HGRID_3D::CheckCell(), HGRID_2D::CheckObjAgainstGrid(), HGRID_3D::CheckObjAgainstGrid(), HGRID_2D::HGRID_RemoveParticleFromHgrid(), HGRID_3D::HGRID_RemoveParticleFromHgrid(), HGRID_2D::TestCell(), and HGRID_3D::TestCell().

{return HGRID_y;}

int Particle::get_HGRID_z ( ) [inline]

Referenced by HGRID_3D::CheckCell(), HGRID_3D::CheckObjAgainstGrid(), HGRID_3D::HGRID_RemoveParticleFromHgrid(), and HGRID_3D::TestCell().

{return HGRID_z;}

int Particle::get_Index ( ) [inline]

Referenced by MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), MD::compute_walls(), and HGRID_base::TestObject().

{return index;}

int Particle::get_IndSpecies ( ) [inline]

Referenced by MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), MD::compute_walls(), Chute::get_collision_time(), MD::get_maximum_velocity(), Chute::get_restitution_coefficient(), and MD::set_dt().

{return indSpecies;}

Mdouble Particle::get_Inertia ( ) const [inline]

Referenced by Particle().

{return inertia;}

Mdouble Particle::get_InvInertia ( ) const [inline]

Referenced by MD::do_integration_after_force_computation(), MD::do_integration_before_force_computation(), and Particle().

{return invInertia;}

Mdouble Particle::get_InvMass ( ) const [inline]

Referenced by MD::do_integration_after_force_computation(), MD::do_integration_before_force_computation(), and Particle().

{return invMass;}

Mdouble Particle::get_KineticEnergy ( ) [inline]

{return 0.5 * mass * velocity.GetLength2();}

Mdouble Particle::get_Mass ( ) const [inline]

Referenced by MD::compute_external_forces(), Chute::get_collision_time(), MD::get_Mass_from_Radius(), MD::get_maximum_velocity(), Chute::get_restitution_coefficient(), Chute::get_SmallestParticle(), Particle(), Chute::set_collision_time_and_restitution_coefficient(), and MD::set_dt().

{return mass;}

Particle* Particle::get_PeriodicFromParticle ( ) [inline]

Referenced by MD::Check_and_Duplicate_Periodic_Particle(), MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), MD::compute_walls(), and MD::Remove_Duplicate_Periodic_Particles().

{return periodicFromParticle;}

Vec3D& Particle::get_Position ( ) [inline]

int Particle::get_Species ( ) [inline]

{return indSpecies;}

CTangentialSprings& Particle::get_TangentialSprings ( ) [inline]

Referenced by MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), MD::compute_walls(), and Chute::initialize_inflow_particle().

{return tangentialSprings;}

Vec3D& Particle::get_Torque ( ) [inline]

Referenced by MD::compute_walls(), MD::do_integration_after_force_computation(), and MD::do_integration_before_force_computation().

{return torque;}

Vec3D& Particle::get_Velocity ( ) [inline]

Referenced by MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), MD::compute_walls(), Chute::create_inflow_particle(), MD::do_integration_before_force_computation(), and MD::solve().

{return velocity;}

Mdouble Particle::get_Volume ( vector< CSpecies > & Species ) const [inline]

Get Particle volume function, which required a reference to the Species vector. It returns the volume of the Particle.

References constants::pi.

        {
                switch(Species[indSpecies].dim_particle)
                {
                        case 3 :
                                return (4.0/3.0 * constants::pi * radius * radius * radius);
                        case 2 :
                                return (constants::pi * radius * radius);
                        case 1 :
                                return (2.0 * radius);
                        default :
                        {
                                cerr<<"In get_Volume(vector<CSpecies>& Species) the dimension of the particle is not set"<<endl;
                                exit(-1);
                        }
                }

        }

bool Particle::isFixed ( ) [inline]

Is fixed Particle function. It returns wether a Particle is fixed or not, by cheking its inverse Mass.

Referenced by MD::compute_external_forces(), MD::compute_internal_forces(), MD::compute_plastic_internal_forces(), and MD::compute_walls().

{return (invMass==0.0);}

void Particle::move ( Vec3D _new ) [inline]

Referenced by MD::do_integration_before_force_computation().

{position+=_new;}

void Particle::print ( std::ostream & os ) [inline]

Particle print function, which accepts an os stringstream as input. It prints human readable Particle information to the stringstream.

Referenced by MD::print().

                                   {
                os << "Particle( Position:" << position
                        << ", Velocity:" << velocity
                        << ", Radius:" << radius
                        << ", Mass:" << mass
         //<< ", InvMass:" << invMass
         //<< ", Angle:" << Angle
                        << ", AngularVelocity:" << angularVelocity
                        << ", Inertia:" << inertia
                        << ")";
        }

void Particle::print_HGRID ( std::ostream & os ) [inline]

                                         {
                os << "Particle( HGRID_Level:" << HGRID_Level
                        << ", HGRID_x:" << HGRID_x
                        << ", HGRID_y:" << HGRID_y
                        << ", HGRID_z:" << HGRID_z
                        << ")";
        }

void Particle::rotate ( Vec3D _new ) [inline]

Referenced by MD::do_integration_after_force_computation(), and MD::do_integration_before_force_computation().

{angle+=_new;}

void Particle::set_Angle ( Vec3D _new ) [inline]

{angle=_new;}

void Particle::set_AngularVelocity ( Vec3D _new ) [inline]

{angularVelocity=_new;}

void Particle::set_Force ( Vec3D _new ) [inline]

{force=_new;}

void Particle::set_HGRID_Level ( int _new ) [inline]

Referenced by HGrid::InsertParticleToHgrid().

{HGRID_Level=_new;}

void Particle::set_HGRID_NextObject ( Particle * _new ) [inline]

Referenced by HGRID_2D::HGRID_RemoveParticleFromHgrid(), HGRID_3D::HGRID_RemoveParticleFromHgrid(), HGRID_2D::HGRID_UpdateParticleInHgrid(), and HGRID_3D::HGRID_UpdateParticleInHgrid().

{HGRID_NextObject=_new;}

void Particle::set_HGRID_x ( int _new ) [inline]

Referenced by HGRID_2D::HGRID_UpdateParticleInHgrid(), and HGRID_3D::HGRID_UpdateParticleInHgrid().

{HGRID_x=_new;}

void Particle::set_HGRID_y ( int _new ) [inline]

Referenced by HGRID_2D::HGRID_UpdateParticleInHgrid(), and HGRID_3D::HGRID_UpdateParticleInHgrid().

{HGRID_y=_new;}

void Particle::set_HGRID_z ( int _new ) [inline]

Referenced by HGRID_3D::HGRID_UpdateParticleInHgrid().

{HGRID_z=_new;}

void Particle::set_Index ( int _new ) [inline]

Referenced by ParticleHandler::copyAndAddParticle().

{index=_new;}

void Particle::set_IndSpecies ( int _new ) [inline]

Referenced by MD::get_Mass_from_Radius().

{indSpecies=_new;}

void Particle::set_inertia ( Mdouble _new ) [inline]

{if (_new>=0){inertia=_new; invInertia=1.0/_new;} else { cerr << "Error in set_inertia ("<<_new<<")"<< endl; exit(-1); }}

void Particle::set_Mass ( Mdouble _new ) [inline]

{if(_new>=0.0) {if(invMass){mass=_new;invMass=1.0/_new;}} else { cerr << "Error in set_Mass(" << _new << ")" << endl; exit(-1); }} //InvMass=0 is a flag for a fixed particle

void Particle::set_periodicFromParticle ( Particle * _new ) [inline]

Referenced by MD::Check_and_Duplicate_Periodic_Particle().

{periodicFromParticle=_new;}

void Particle::set_Position ( Vec3D _new ) [inline]

Referenced by Chute::create_bottom(), ChuteWithHopper::create_inflow_particle(), MD::do_integration_after_force_computation(), CWall::get_distance_and_normal_for_axissymmetric_wall(), and Chute::initialize_inflow_particle().

{position=_new;}

void Particle::set_Radius ( Mdouble _new ) [inline]

Referenced by Chute::create_bottom(), Chute::create_inflow_particle(), ChuteWithHopper::create_inflow_particle(), Chute::get_collision_time(), Chute::get_LargestParticle(), MD::get_Mass_from_Radius(), Chute::get_restitution_coefficient(), Chute::get_SmallestParticle(), Chute::initialize_inflow_particle(), Chute::set_collision_time_and_restitution_coefficient(), and ChuteBottom::setup_particles_initial_conditions().

{radius=_new;}

void Particle::set_species ( Mdouble _new ) [inline]

{indSpecies=_new;}

void Particle::set_Torque ( Vec3D _new ) [inline]

Referenced by MD::compute_walls().

{torque=_new;}

void Particle::set_Velocity ( Vec3D _new ) [inline]

Referenced by MD::do_integration_after_force_computation(), Chute::initialize_inflow_particle(), and ChuteBottom::setup_particles_initial_conditions().

{velocity=_new;}

void Particle::unfix ( vector< CSpecies > & Species ) [inline]

Unfix Particle function, which required a reference to the Species vector. It un fixes a Particle by compyting the Particles mass and inertia.

                                             {
                invMass=1.0;
                compute_particle_mass(Species);
        }

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const Particle &	p
	)		`[friend]`

Particle << opperator, writes Particle information to the stringstream.

todo: add plastic history parameter

        {
                os << p.position << " " << p.velocity << " " << p.radius << " " << p.angle << " " << p.angularVelocity << " " << p.invMass << " " << p.invInertia << " " << p.tangentialSprings;
                return os;
        }

std::istream& operator>>	(	std::istream &	is,
		Particle &	p
	)		`[friend]`

Particle >> opperator, reads Particle information from the stringstream.

        {
                is >> p.position >> p.velocity >> p.radius >> p.angle >> p.angularVelocity >> p.invMass >> p.invInertia >> p.tangentialSprings; //add this for the new restart
                if (p.invMass) p.mass = 1.0/p.invMass; else p.mass = 1e20;
                if (p.invInertia) p.inertia = 1.0/p.invInertia; else p.inertia = 1e20;
                return is;
        }
