Chute adds three new effects to the HGrid: the gravity direction can be set using the ChuteAngle variable, a (smooth or rough) bottom wall is created by default, and some basic inflow and outflow routines are added. More...

#include <Chute.h>

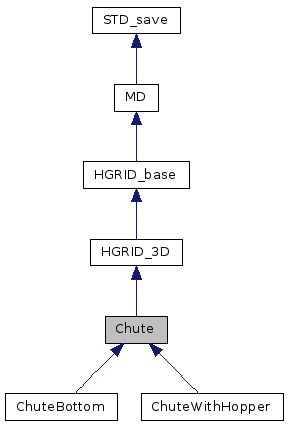

Inheritance diagram for Chute:

[legend]

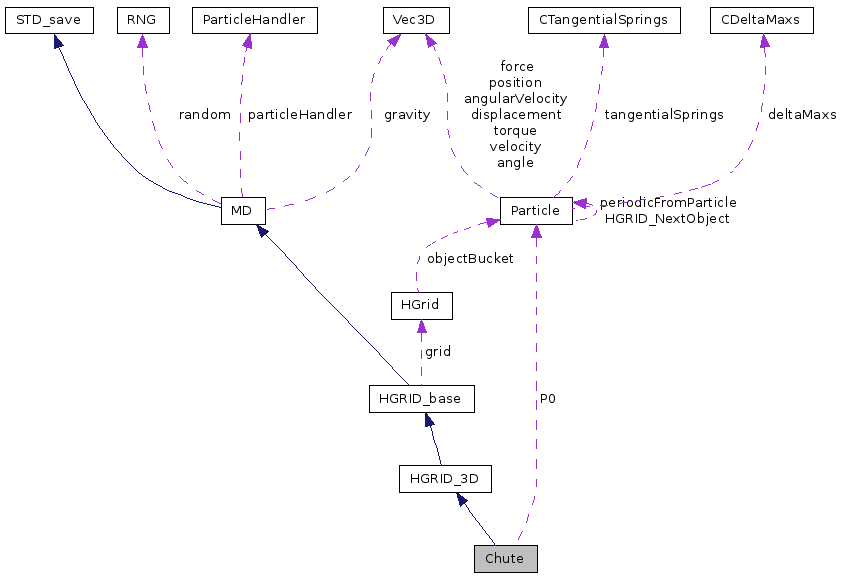

Collaboration diagram for Chute:

[legend]

List of all members.

Public Member Functions
	Chute ()
	This is the default constructor. All it does is set sensible defaults.
	Chute (MD &other)
	Copy-constructor for creates an HGRID problem from an existing MD problem.
	Chute (HGRID_base &other)
	Chute (HGRID_3D &other)
void	constructor ()
	This is the actual constructor; it is called do both constructors above.
void	make_chute_periodic ()
	This makes the chute periodic, in y.
bool	get_IsPeriodic ()
	Get wether the chute is periodic.
void	setup_particles_initial_conditions ()
	initialize particle position, velocity, radius
void	read (std::istream &is)
	This function reads all chute data.
void	write (std::ostream &os)
	This function writes all chute data.
void	print (std::ostream &os, bool print_all=false)
	This function couts all chute data.
void	set_FixedParticleRadius (Mdouble new_)
	Allows radius of fixed particles to be changed.
Mdouble	get_FixedParticleRadius ()
	Allows radius of fixed particles to be accessed.
void	set_RandomizedBottom (int new_)
	Changes RandomizedBottom.
int	get_RandomizedBottom ()
	Accesses RandomizedBottom.
void	set_ChuteAngle (Mdouble new_)
	Sets gravity vector according to chute angle (in degrees)
void	set_ChuteAngle (Mdouble new_, Mdouble gravity)
	Sets gravity vector according to chute angle (in degrees)
Mdouble	get_ChuteAngle ()
	Gets chute angle (in radians)
Mdouble	get_ChuteAngleDegrees ()
void	set_max_failed (unsigned int new_)
	Allows radius of fixed particles to be changed.
unsigned int	get_max_failed ()
	Allows radius of fixed particles to be accessed.
void	set_InflowParticleRadius (Mdouble new_)
	Allows radius of inflow particles to be changed.
void	set_InflowParticleRadius (Mdouble new_min, Mdouble new_max)
	Allows radius of inflow particles to be set to a range of values.
void	set_MinInflowParticleRadius (Mdouble new_min)
void	set_MaxInflowParticleRadius (Mdouble new_max)
Mdouble	get_InflowParticleRadius ()
	Allows radius of inflow particles to be accessed.
Mdouble	get_MinInflowParticleRadius ()
	Allows radius of inflow particles to be accessed.
Mdouble	get_MaxInflowParticleRadius ()
	Allows radius of inflow particles to be accessed.
void	set_InflowHeight (Mdouble new_)
	Changes inflow height.
Mdouble	get_InflowHeight ()
	Accesses inflow height.
void	set_InflowVelocity (Mdouble new_)
	Changes inflow velocity.
Mdouble	get_InflowVelocity ()
	Accesses inflow velocity.
void	set_InflowVelocityVariance (Mdouble new_)
	Changes inflow velocity variance.
Mdouble	get_InflowVelocityVariance ()
	Accesses inflow velocity variance.
void	set_InitialHeight (Mdouble new_)
Mdouble	get_InitialHeight ()
void	set_InitialVelocity (Mdouble new_)
Mdouble	get_InitialVelocity ()
void	set_InitialVelocityVariance (Mdouble new_)
Mdouble	get_InitialVelocityVariance ()
void	set_ChuteWidth (Mdouble new_)
	Access function that set the width of the chute.
Mdouble	get_ChuteWidth ()
virtual void	set_ChuteLength (Mdouble new_)
Mdouble	get_ChuteLength ()
int	readNextArgument (unsigned int &i, unsigned int argc, char *argv[])
void	set_collision_time_and_restitution_coefficient (Mdouble tc, Mdouble eps)
	Sets k, disp such that it matches a given tc and eps for a collision of two inflow particles.
Mdouble	get_collision_time ()
	Calculates collision time of two inflow particles.
Mdouble	get_restitution_coefficient ()
	Calculates restitution coefficient of two inflow particles.
void	set_dt ()
	Sets dt to 1/50-th of the collision time for two particles of mass P.
void	set_dt (Mdouble dt)
	Sets dt.
Particle *	get_SmallestParticle ()
	Returns the smallest particle (by mass) in the system.
Particle *	get_LargestParticle ()
	Returns the smallest particle (by mass) in the system.
Mdouble	get_radius_of_smallest_particle ()
	Returns the radius of the smallest particle.
Protected Member Functions
virtual bool	IsInsertable (Particle &P)
	here, CheckObjects is called; returns true is the particle should be added
void	add_particle (Particle &P)
	adds particle to hgrid
void	actions_before_time_step ()
	This is action before the time step is started.
virtual void	add_particles ()
	Here we define the inflow.
void	clean_chute ()
	Here we define the outflow.
void	initialize_inflow_particle ()
	Sets initial values for particles that are created at the inflow.
virtual void	create_inflow_particle ()
	Sets variable values for particles that are created at the inflow.
virtual void	create_bottom ()
	Create the bottom of chute out of particles.
void	cout_time ()
	Couts time.
Mdouble	get_radius_of_largest_particle ()
Protected Attributes
Mdouble	FixedParticleRadius
int	RandomizedBottom
Mdouble	ChuteAngle
Mdouble	MinInflowParticleRadius
Mdouble	MaxInflowParticleRadius
Mdouble	InflowVelocity
Mdouble	InflowVelocityVariance
Mdouble	InflowHeight
int	max_failed
int	num_created
Particle	P0
Private Attributes
bool	is_periodic

Detailed Description

Chute adds three new effects to the HGrid: the gravity direction can be set using the ChuteAngle variable, a (smooth or rough) bottom wall is created by default, and some basic inflow and outflow routines are added.

Constructor & Destructor Documentation

Chute::Chute ( ) [inline]

This is the default constructor. All it does is set sensible defaults.

References constructor().

        {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "Chute() finished" << endl;
                #endif
        }

Chute::Chute ( MD & other ) [inline]

Copy-constructor for creates an HGRID problem from an existing MD problem.

References constructor().

                         : MD(other), HGRID_3D(other)
                {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "Chute(MD& other) finished" << endl;
                #endif
        }

Chute::Chute ( HGRID_base & other ) [inline]

References constructor().

                                 : MD(other), HGRID_3D(other)
                {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "Chute(HGRID_base& other)  finished" << endl;
                #endif
        }

Chute::Chute ( HGRID_3D & other ) [inline]

References constructor().

                               : MD(other), HGRID_3D(other)
                {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "Chute(HGRID_3D& other) finished" << endl;
                #endif
        }

Member Function Documentation

void Chute::actions_before_time_step ( ) [protected, virtual]

This is action before the time step is started.

Reimplemented from MD.

Reimplemented in ChuteBottom.

References add_particles(), and clean_chute().

                                    {
        add_particles();
        clean_chute();
}

void Chute::add_particle ( Particle & P ) [protected]

adds particle to hgrid

References ParticleHandler::copyAndAddParticle(), MD::get_ParticleHandler(), HGRID_base::grid, HGRID_3D::HGRID_UpdateParticleInHgrid(), and HGrid::InsertParticleToHgrid().

Referenced by IsInsertable().

                                    {
        //Puts the particle in the Particle list
        get_ParticleHandler().copyAndAddParticle(P);
        //This places the particle in this grid
        grid->InsertParticleToHgrid(get_ParticleHandler().back());
        //This computes where the particle currectly is in the grid
        HGRID_UpdateParticleInHgrid(get_ParticleHandler().back());
}

void Chute::add_particles ( ) [protected, virtual]

Here we define the inflow.

New particles are created at the inflow, subject to criteria the user can set.

References create_inflow_particle(), IsInsertable(), max_failed, num_created, and P0.

Referenced by actions_before_time_step().

{
        int failed = 0;

        //try max_failed times to find new insertable particle
        while (failed<=max_failed){
                create_inflow_particle();
                if (IsInsertable(P0)) {
                        failed = 0;
                        num_created++;
                } else failed++;
        };
}

void Chute::clean_chute ( ) [protected]

Here we define the outflow.

New particles are destroyed at the outflow, subject to criteria the user can set.

References ParticleHandler::get_NumberOfParticles(), ParticleHandler::get_Particle(), MD::get_ParticleHandler(), Particle::get_Position(), MD::get_xmax(), MD::get_xmin(), MD::removeParticle(), and Vec3D::X.

Referenced by actions_before_time_step().

{
        //clean outflow every 100 timesteps
        static int count = 0, maxcount = 100;
        if (count>maxcount)
        {
                count = 0;
                // delete all outflowing particles
                for (unsigned int i=0;i<get_ParticleHandler().get_NumberOfParticles();)
                {

                        if (get_ParticleHandler().get_Particle(i)->get_Position().X>get_xmax()||get_ParticleHandler().get_Particle(i)->get_Position().X<get_xmin())//||get_ParticleHandler().get_Particle(i)->Position.Z+get_ParticleHandler().get_Particle(i)->Radius<zmin)

                        {
                                #ifdef DEBUG_OUTPUT_FULL
                                        cout << "erased:" << get_ParticleHandler().get_Particle(i) << endl;
                                #endif
                                removeParticle(i);
                        }
                        else i++;
                }
        } else count++;
}

void Chute::constructor ( )

This is the actual constructor; it is called do both constructors above.

This is the actually constructor it is called do both constructors above.

Reimplemented from HGRID_3D.

Reimplemented in ChuteWithHopper, and ChuteBottom.

References initialize_inflow_particle(), is_periodic, num_created, set_ChuteAngle(), set_FixedParticleRadius(), set_InflowHeight(), set_InflowParticleRadius(), set_InflowVelocity(), set_InflowVelocityVariance(), set_max_failed(), and set_RandomizedBottom().

Referenced by Chute().

                       {
        is_periodic=false;
        set_FixedParticleRadius(0.001);
        set_RandomizedBottom(0);
        set_ChuteAngle(0.0);

        set_max_failed(1);
        num_created = 0;
        set_InflowParticleRadius(0.001);
        set_InflowVelocity(0.1);
        set_InflowVelocityVariance(0.0);
        set_InflowHeight(0.02);
        initialize_inflow_particle();
}

void Chute::cout_time ( ) [protected, virtual]

Couts time.

Reimplemented from MD.

References ParticleHandler::get_NumberOfParticles(), MD::get_ParticleHandler(), MD::get_t(), and MD::get_tmax().

                      {
        cout << "t=" << setprecision(3) << left << setw(6) << get_t()
                << ", tmax=" << setprecision(3) << left << setw(6) << get_tmax()
                << ", N=" << setprecision(3) << left << setw(6) << get_ParticleHandler().get_NumberOfParticles()
                //~ << ", Nmax=" << setprecision(3) << left << setw(6) << Particles.capacity()
                //~ << ", created=" << setprecision(3) << left << setw(6) << num_created
                << endl;
        //~ static unsigned int counter=0;
        //~ if (++counter>10) {counter=0; cout.flush();}
}

void Chute::create_bottom ( ) [protected, virtual]

Create the bottom of chute out of particles.

Creates the bottom of the chute; either smooth, grid-like or random ///.

References ParticleHandler::copyAndAddParticle(), ParticleHandler::end(), get_FixedParticleRadius(), MD::get_ParticleHandler(), Particle::get_Position(), Particle::get_Radius(), RNG::get_RN(), MD::get_xmax(), MD::get_xmin(), MD::get_ymax(), MD::get_ymin(), MD::get_zmin(), HGRID_base::HGRID_actions_before_time_loop(), HGRID_base::HGRID_actions_before_time_step(), IsInsertable(), ChuteBottom::make_rough_bottom(), MD::random, RandomizedBottom, set_InflowParticleRadius(), Particle::set_Position(), Particle::set_Radius(), MD::Walls, Vec3D::X, and Vec3D::Y.

Referenced by setup_particles_initial_conditions(), and ChuteBottom::setup_particles_initial_conditions().

                          {
        if (abs(get_FixedParticleRadius())<1e-12) // smooth bottom
        {
                //bottom wall
                Walls.resize(Walls.size()+1);
                Walls.back().set(Vec3D(0.0, 0.0, -1.0), -get_zmin());
        }
        else //rough bottom
        {
                // Define standard fixed particle
                Particle F0;
                F0.set_Radius(get_FixedParticleRadius());
                F0.set_Position(Vec3D(0.0,0.0,0.0));

                //define grid parameters
                Mdouble dx = 2.0 * F0.get_Radius();
                Mdouble dy = 2.0 * F0.get_Radius();
                int nx = max(1,(int)floor((get_xmax()-get_xmin())/dx));
                int ny = max(1,(int)floor((get_ymax()-get_ymin())/dy));
                dx = (get_xmax()-get_xmin())/nx; dy = (get_ymax()-get_ymin())/ny;

                if (!RandomizedBottom) { // grid-like fixed-particle bottom
                        for (int i=0; i<nx; i++)
                                for (int j=0; j<ny; j++)
                                {
                                        F0.get_Position().X = F0.get_Radius() + dx * i;
                                        F0.get_Position().Y = F0.get_Radius() + dy * j;
                                        get_ParticleHandler().copyAndAddParticle(F0);
                                }

                } else if (RandomizedBottom==1) { // random fixed-particle bottom
                        cout << "create rough chute bottom, fixed z" << endl;

                        Mdouble dx = 2.0 * F0.get_Radius();
                        Mdouble dy = 2.0 * F0.get_Radius();
                        int nx = max(1,(int)floor((get_xmax()-get_xmin())/dx));
                        int ny = max(1,(int)floor((get_ymax()-get_ymin())/dy));
                        dx = (get_xmax()-get_xmin())/nx; dy = (get_ymax()-get_ymin())/ny;

                        //set_Nmax(2*nx*ny);

                        //bottom wall
                        Walls.resize(Walls.size()+1);

                        Walls.back().set(Vec3D(0.0, 0.0, -1.0), -(get_zmin()-.5*F0.get_Radius()));


                        //add first particle to initialize HGRID
                        F0.get_Position().X = random.get_RN(F0.get_Radius(), get_xmax() - F0.get_Radius());
                        F0.get_Position().Y = random.get_RN(get_ymin()+F0.get_Radius(), get_ymax()-F0.get_Radius());
                        get_ParticleHandler().copyAndAddParticle(F0);


                        HGRID_actions_before_time_loop();
                        HGRID_actions_before_time_step();

                        //now add more particles
                        int failed = 0;
                        while (failed<500)
                        {


                                F0.get_Position().X = random.get_RN(F0.get_Radius(), get_xmax()-F0.get_Radius());
                                F0.get_Position().Y = random.get_RN(get_ymin()+F0.get_Radius(), get_ymax()-F0.get_Radius());

                                if (IsInsertable(F0)) {
                                        failed = 0;
                                } else failed++;
                        }
                } else {
                        //this pointer is the current MD class, so the bottom is create with the particles properties from the MD class
                        ChuteBottom bottom(*this);
                        bottom.set_InflowParticleRadius(get_FixedParticleRadius());
                        bottom.make_rough_bottom(get_ParticleHandler());
                        cout<<"Starting to destruct ChuteBottom"<<endl;
                }
                cout<<"Destructed ChuteBottom"<<endl;
                //finally, fix particles to the floor
                for (vector<Particle*>::iterator it= get_ParticleHandler().begin(); it!=get_ParticleHandler().end(); ++it)
                        (*it)->fixParticle();



        }
}

void Chute::create_inflow_particle ( ) [protected, virtual]

Sets variable values for particles that are created at the inflow.

Reimplemented in ChuteWithHopper.

References Particle::compute_particle_mass(), FixedParticleRadius, Particle::get_Position(), Particle::get_Radius(), RNG::get_RN(), Particle::get_Velocity(), MD::get_xmin(), MD::get_ymax(), MD::get_ymin(), MD::get_zmax(), MD::get_zmin(), InflowVelocity, InflowVelocityVariance, MaxInflowParticleRadius, MinInflowParticleRadius, P0, MD::random, Particle::set_Radius(), MD::Species, Vec3D::X, Vec3D::Y, and Vec3D::Z.

Referenced by add_particles().

{
        P0.set_Radius(random.get_RN(MinInflowParticleRadius,MaxInflowParticleRadius));
        P0.compute_particle_mass(Species);


        P0.get_Position().X = get_xmin() + P0.get_Radius();
        if ((get_ymax()-get_ymin())==2.0*MaxInflowParticleRadius) P0.get_Position().Y = get_ymin() + P0.get_Radius();
        else P0.get_Position().Y = random.get_RN(get_ymin() + P0.get_Radius(), get_ymax() - P0.get_Radius());
        P0.get_Position().Z = random.get_RN(get_zmin() + FixedParticleRadius + P0.get_Radius(), get_zmax() - P0.get_Radius());
        P0.get_Velocity().X = InflowVelocity * random.get_RN(-InflowVelocityVariance,InflowVelocityVariance) + InflowVelocity;
        P0.get_Velocity().Y = InflowVelocity * random.get_RN(-InflowVelocityVariance,InflowVelocityVariance);
        P0.get_Velocity().Z = InflowVelocity * random.get_RN(-InflowVelocityVariance,InflowVelocityVariance);


}

Mdouble Chute::get_ChuteAngle ( ) [inline]

Gets chute angle (in radians)

Todo:: Thomas: This should return the angle in degrees

References ChuteAngle.

Referenced by ChuteWithHopper::add_hopper(), and ChuteWithHopper::create_inflow_particle().

{return ChuteAngle;}

Mdouble Chute::get_ChuteAngleDegrees ( ) [inline]

References ChuteAngle, and constants::pi.

{return ChuteAngle*180./constants::pi;}

Mdouble Chute::get_ChuteLength ( ) [inline]

Reimplemented in ChuteWithHopper.

References MD::get_xmax().

{return get_xmax();}

Mdouble Chute::get_ChuteWidth ( ) [inline]

References MD::get_ymax().

{return get_ymax();}

Mdouble Chute::get_collision_time ( )

Calculates collision time of two inflow particles.

References Particle::compute_particle_mass(), Particle::get_IndSpecies(), Particle::get_Mass(), MaxInflowParticleRadius, MinInflowParticleRadius, P0, Particle::set_Radius(), and MD::Species.

Referenced by ChuteBottom::make_rough_bottom(), and set_dt().

                                 {
        P0.set_Radius(0.5*(MinInflowParticleRadius+MaxInflowParticleRadius));
        P0.compute_particle_mass(Species);
        return MD::get_collision_time(P0.get_Mass(),P0.get_IndSpecies());
}

Mdouble Chute::get_FixedParticleRadius ( ) [inline]

Allows radius of fixed particles to be accessed.

References FixedParticleRadius.

Referenced by create_bottom(), and ChuteBottom::setup_particles_initial_conditions().

{return FixedParticleRadius;}

Mdouble Chute::get_InflowHeight ( ) [inline]

Accesses inflow height.

References InflowHeight.

Referenced by get_InitialHeight().

{return InflowHeight;}

Mdouble Chute::get_InflowParticleRadius ( ) [inline]

Allows radius of inflow particles to be accessed.

References MaxInflowParticleRadius, and MinInflowParticleRadius.

Referenced by ChuteBottom::make_rough_bottom(), and ChuteBottom::setup_particles_initial_conditions().

{return 0.5*(MinInflowParticleRadius+MaxInflowParticleRadius);}

Mdouble Chute::get_InflowVelocity ( ) [inline]

Accesses inflow velocity.

References InflowVelocity.

Referenced by get_InitialVelocity().

{return InflowVelocity;}

Mdouble Chute::get_InflowVelocityVariance ( ) [inline]

Accesses inflow velocity variance.

References InflowVelocityVariance.

Referenced by get_InitialVelocityVariance().

{return InflowVelocityVariance;}

Mdouble Chute::get_InitialHeight ( ) [inline]

References get_InflowHeight().

                                   {
                cerr << "WARNING : get_InitialHeight(Mdouble) is a deprecated function, use get_InflowHeight(Mdouble) instead." << endl;
                return get_InflowHeight();
        }

Mdouble Chute::get_InitialVelocity ( ) [inline]

References get_InflowVelocity().

                                     {
                cerr << "WARNING : get_InitialVelocity(Mdouble) is a deprecated function, use get_InflowVelocity(Mdouble) instead." << endl;
                return get_InflowVelocity();
        }

Mdouble Chute::get_InitialVelocityVariance ( ) [inline]

References get_InflowVelocityVariance().

                                             {
                cerr << "WARNING : get_InitialVelocityVariance(Mdouble) is a deprecated function, use get_InflowVelocityVariance(Mdouble) instead." << endl;
                return get_InflowVelocityVariance();
        }

bool Chute::get_IsPeriodic ( ) [inline]

Get wether the chute is periodic.

References is_periodic.

{return is_periodic;}

Particle * Chute::get_LargestParticle ( ) [virtual]

Returns the smallest particle (by mass) in the system.

Reimplemented from MD.

References Particle::compute_particle_mass(), ParticleHandler::get_NumberOfParticles(), ParticleHandler::get_Particle(), MD::get_ParticleHandler(), Particle::get_Radius(), MaxInflowParticleRadius, P0, Particle::set_Radius(), and MD::Species.

                                    {
        P0.set_Radius(MaxInflowParticleRadius);
        P0.compute_particle_mass(Species);
        Particle* pP = &P0;
        for (unsigned int i=0; i<get_ParticleHandler().get_NumberOfParticles(); i++) {
                if (get_ParticleHandler().get_Particle(i)->get_Radius()>pP->get_Radius()) pP = get_ParticleHandler().get_Particle(i);
        }
        return pP;
}

unsigned int Chute::get_max_failed ( ) [inline]

Allows radius of fixed particles to be accessed.

References max_failed.

{return max_failed;}

Mdouble Chute::get_MaxInflowParticleRadius ( ) [inline]

Allows radius of inflow particles to be accessed.

References MaxInflowParticleRadius.

Referenced by ChuteBottom::setup_particles_initial_conditions().

{return MaxInflowParticleRadius;}

Mdouble Chute::get_MinInflowParticleRadius ( ) [inline]

Allows radius of inflow particles to be accessed.

References MinInflowParticleRadius.

Referenced by ChuteBottom::setup_particles_initial_conditions().

{return MinInflowParticleRadius;}

Mdouble Chute::get_radius_of_largest_particle ( ) [inline, protected]

References ParticleHandler::end(), FixedParticleRadius, MD::get_ParticleHandler(), and MaxInflowParticleRadius.

                                                {
                Mdouble max_rad=max(FixedParticleRadius,MaxInflowParticleRadius);
                for (vector<Particle*>::iterator it = get_ParticleHandler().begin(); it!=get_ParticleHandler().end(); ++it)
                        max_rad=max(max_rad,(*it)->get_Radius());
                return max_rad;

        }

Mdouble Chute::get_radius_of_smallest_particle ( )

Returns the radius of the smallest particle.

References FixedParticleRadius, ParticleHandler::get_NumberOfParticles(), ParticleHandler::get_Particle(), MD::get_ParticleHandler(), Particle::get_Radius(), and MinInflowParticleRadius.

                                              {
        Mdouble min_rad = MinInflowParticleRadius;
        if (FixedParticleRadius) min_rad = min(min_rad,FixedParticleRadius);
        for (unsigned int i=0; i<get_ParticleHandler().get_NumberOfParticles(); i++) min_rad=min(min_rad,get_ParticleHandler().get_Particle(i)->get_Radius());
        return min_rad;
}

int Chute::get_RandomizedBottom ( ) [inline]

Accesses RandomizedBottom.

References RandomizedBottom.

{return RandomizedBottom;}

Mdouble Chute::get_restitution_coefficient ( )

Calculates restitution coefficient of two inflow particles.

References Particle::compute_particle_mass(), Particle::get_IndSpecies(), Particle::get_Mass(), MaxInflowParticleRadius, MinInflowParticleRadius, P0, Particle::set_Radius(), and MD::Species.

                                          {
        P0.set_Radius(0.5*(MinInflowParticleRadius+MaxInflowParticleRadius));
        P0.compute_particle_mass(Species);
        return MD::get_restitution_coefficient(P0.get_Mass(),P0.get_IndSpecies());
}

Particle * Chute::get_SmallestParticle ( ) [virtual]

Returns the smallest particle (by mass) in the system.

Reimplemented from MD.

References Particle::compute_particle_mass(), Particle::get_Mass(), ParticleHandler::get_NumberOfParticles(), ParticleHandler::get_Particle(), MD::get_ParticleHandler(), MinInflowParticleRadius, P0, Particle::set_Radius(), and MD::Species.

                                     {
        P0.set_Radius(MinInflowParticleRadius);
  P0.compute_particle_mass(Species);
        Particle* pP = &P0;
        for (unsigned int i=0; i<get_ParticleHandler().get_NumberOfParticles(); i++) {
                if (get_ParticleHandler().get_Particle(i)->get_Mass()<pP->get_Mass()) pP = get_ParticleHandler().get_Particle(i);
        }
        return pP;
}

void Chute::initialize_inflow_particle ( ) [protected]

Sets initial values for particles that are created at the inflow.

References Particle::compute_particle_mass(), Particle::get_Angle(), Particle::get_AngularVelocity(), Particle::get_TangentialSprings(), MinInflowParticleRadius, P0, CTangentialSprings::reset(), Particle::set_Position(), Particle::set_Radius(), Particle::set_Velocity(), Vec3D::set_zero(), and MD::Species.

Referenced by constructor().

{
        //Position, maybe also radius and velocity, is reset in create_inflow_particle()
        P0.set_Radius(MinInflowParticleRadius);
        P0.compute_particle_mass(Species);
        P0.get_Angle().set_zero();
        P0.get_AngularVelocity().set_zero();
        P0.get_TangentialSprings().reset();
        P0.set_Position(Vec3D(1e20,1e20,1e20));
        P0.set_Velocity(Vec3D(0.0,0.0,0.0));
}

bool Chute::IsInsertable ( Particle & P ) [protected, virtual]

here, CheckObjects is called; returns true is the particle should be added

todo{Maybe also check if the last particle in a Particular level is removed}

References add_particle(), ParticleHandler::back(), HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_NextObject(), MD::get_ParticleHandler(), HGRID_base::grid, HGrid::objectBucket, ParticleHandler::removeLastParticle(), and HGRID_3D::TestObjAgainstGrid().

Referenced by add_particles(), create_bottom(), and ChuteBottom::setup_particles_initial_conditions().

                                    {

        add_particle(P);
        if(TestObjAgainstGrid(grid,get_ParticleHandler().back()))
                return true;
        else
        {
        Cell cell(get_ParticleHandler().back()->get_HGRID_x(),get_ParticleHandler().back()->get_HGRID_y(), get_ParticleHandler().back()->get_HGRID_z(), get_ParticleHandler().back()->get_HGRID_Level());
                int bucket = grid->ComputeHashBucketIndex(cell);
                grid->objectBucket[bucket] = get_ParticleHandler().back()->get_HGRID_NextObject();
                get_ParticleHandler().removeLastParticle();
                return false;
        }
}

void Chute::make_chute_periodic ( ) [inline]

This makes the chute periodic, in y.

References is_periodic.

{is_periodic=true;}

void Chute::print	(	std::ostream &	os,
		bool	print_all = `false`
	)		`[virtual]`

This function couts all chute data.

Reimplemented from HGRID_base.

References ChuteAngle, FixedParticleRadius, InflowHeight, InflowVelocity, InflowVelocityVariance, max_failed, MaxInflowParticleRadius, MinInflowParticleRadius, num_created, constants::pi, and RandomizedBottom.

                                                {
        HGRID_base::print(os, print_all);
        os << " FixedParticleRadius:" << FixedParticleRadius << ", InflowParticleRadius: [" << MinInflowParticleRadius << "," << MaxInflowParticleRadius << "]," << endl
                 << " RandomizedBottom:" << RandomizedBottom << ", ChuteAngle:" << ChuteAngle/constants::pi*180. << ", max_failed:" << max_failed << ", num_created:" << num_created << "," << endl
                 << " InflowVelocity:" << InflowVelocity << ", InflowVelocityVariance:" << InflowVelocityVariance << ", InflowHeight:" << InflowHeight << endl;
}

void Chute::read ( std::istream & is ) [virtual]

This function reads all chute data.

Reimplemented from HGRID_base.

Reimplemented in ChuteWithHopper.

References ChuteAngle, FixedParticleRadius, MD::get_restart_version(), InflowHeight, InflowVelocity, InflowVelocityVariance, max_failed, MaxInflowParticleRadius, MinInflowParticleRadius, num_created, constants::pi, and RandomizedBottom.

                                {
        HGRID_base::read(is);

        //read out the full line first, so if there is an error it does not affect the read of the next line
        string line_string;
        getline(is,line_string);
        stringstream line (stringstream::in | stringstream::out);
        line << line_string;

        if (get_restart_version()==1) {
                line >> FixedParticleRadius >> RandomizedBottom >> ChuteAngle
                   >> MinInflowParticleRadius >> MaxInflowParticleRadius >> max_failed >> num_created
                   >> InflowVelocity >> InflowVelocityVariance >> InflowHeight;
        } else {
                string dummy;
                line >> dummy >> FixedParticleRadius >> dummy >> MinInflowParticleRadius >> dummy >> MaxInflowParticleRadius
                                 >> dummy >> RandomizedBottom >> dummy >> ChuteAngle >> dummy >> max_failed >> dummy >> num_created
                   >> dummy >> InflowVelocity >> dummy >> InflowVelocityVariance >> dummy >> InflowHeight;
        }
        //if the Chute Angle is given in degrees, move to radians;
        if (ChuteAngle>1.0) ChuteAngle *= constants::pi/180.;
}

int Chute::readNextArgument	(	unsigned int &	i,
		unsigned int	argc,
		char *	argv[]
	)		`[virtual]`

Reimplemented from MD.

Reimplemented in ChuteWithHopper.

References set_ChuteAngle(), set_ChuteLength(), set_ChuteWidth(), set_FixedParticleRadius(), set_InflowHeight(), set_InflowParticleRadius(), MD::set_number_of_saves(), set_RandomizedBottom(), and MD::set_zmax().

                                                                            {
        if (!strcmp(argv[i],"-inflowHeight")) {
                set_InflowHeight(atof(argv[i+1]));
                set_zmax(atof(argv[i+1]));
        } else if (!strcmp(argv[i],"-chuteAngle")) {
                set_ChuteAngle(atof(argv[i+1]));
        } else if (!strcmp(argv[i],"-chuteLength")) {
                set_ChuteLength(atof(argv[i+1]));
        } else if (!strcmp(argv[i],"-chuteWidth")) {
                set_ChuteWidth(atof(argv[i+1]));
        } else if (!strcmp(argv[i],"-number_of_saves")) {
                set_number_of_saves(atof(argv[i+1]));
        } else if (!strcmp(argv[i],"-fixedParticleRadius")) {
                set_FixedParticleRadius(atof(argv[i+1]));
        } else if (!strcmp(argv[i],"-inflowParticleRadiusRange")) {
                set_InflowParticleRadius(atof(argv[i+1]),atof(argv[i+2]));
                i++;
        } else if (!strcmp(argv[i],"-inflowParticleRadius")) {
                set_InflowParticleRadius(atof(argv[i+1]));
        } else if (!strcmp(argv[i],"-randomizedBottom")) {
                set_RandomizedBottom(atof(argv[i+1]));
        } else return HGRID_3D::readNextArgument(i, argc, argv); //if argv[i] is not found, check the commands in HGRID_3D
        return true; //returns true if argv[i] is found
}

void Chute::set_ChuteAngle ( Mdouble new_ ) [inline]

Sets gravity vector according to chute angle (in degrees)

References MD::get_gravity(), Vec3D::GetLength(), MD::gravity, and set_ChuteAngle().

Referenced by constructor(), ChuteBottom::make_rough_bottom(), readNextArgument(), and set_ChuteAngle().

{Mdouble gravity = get_gravity().GetLength(); if (gravity==0) {cerr<<"WARNING: zero gravity";} set_ChuteAngle(new_, gravity);}

void Chute::set_ChuteAngle	(	Mdouble	new_,
		Mdouble	gravity
	)		`[inline]`

Sets gravity vector according to chute angle (in degrees)

References ChuteAngle, constants::pi, and MD::set_gravity().

{if (new_>=0.0&&new_<=90.0) {ChuteAngle = new_*constants::pi/180.0; set_gravity(Vec3D(sin(ChuteAngle), 0.0, -cos(ChuteAngle))*gravity);} else cerr << "WARNING : Chute angle must be within [0,90]" << endl;}

virtual void Chute::set_ChuteLength ( Mdouble new_ ) [inline, virtual]

Reimplemented in ChuteWithHopper.

References MD::set_xmax().

Referenced by readNextArgument().

{set_xmax(new_);}

void Chute::set_ChuteWidth ( Mdouble new_ ) [inline]

Access function that set the width of the chute.

References MD::set_ymax().

Referenced by readNextArgument().

{set_ymax(new_);}

void Chute::set_collision_time_and_restitution_coefficient	(	Mdouble	tc,
		Mdouble	eps
	)

Sets k, disp such that it matches a given tc and eps for a collision of two inflow particles.

References Particle::compute_particle_mass(), MD::get_dissipation(), Particle::get_Mass(), Particle::get_Radius(), MD::get_rho(), MaxInflowParticleRadius, MinInflowParticleRadius, P0, constants::pi, MD::set_dissipation(), MD::set_k(), Particle::set_Radius(), MD::Species, and sqr.

Referenced by ChuteBottom::make_rough_bottom().

                                                                                 {
        P0.set_Radius(0.5*(MinInflowParticleRadius+MaxInflowParticleRadius));
        P0.compute_particle_mass(Species);
        set_dissipation(- P0.get_Mass() / tc * log(eps));
        set_k(.5 * P0.get_Mass() * (constants::pi*constants::pi/tc/tc + get_dissipation()*get_dissipation()/sqr(P0.get_Mass())));
        cout << "collision time and restitution coefficient is set for a particle of radius " << P0.get_Radius() << " and density " << get_rho() << endl;
}

void Chute::set_dt ( ) [inline]

Sets dt to 1/50-th of the collision time for two particles of mass P.

Reimplemented from MD.

References get_collision_time(), and set_dt().

Referenced by ChuteBottom::make_rough_bottom(), and set_dt().

{cout<<"Chute set_dt"<<endl;set_dt(.02 * get_collision_time());}

void Chute::set_dt ( Mdouble dt ) [inline]

Sets dt.

Reimplemented from MD.

References set_dt().

{MD::set_dt(dt);}

void Chute::set_FixedParticleRadius ( Mdouble new_ ) [inline]

Allows radius of fixed particles to be changed.

References FixedParticleRadius.

Referenced by constructor(), ChuteBottom::make_rough_bottom(), and readNextArgument().

{if (new_ >= 0.0) FixedParticleRadius=new_; else cerr << "WARNING : Fixed particle radius must be greater than or equal to zero" << endl;}

void Chute::set_InflowHeight ( Mdouble new_ ) [inline]

Changes inflow height.

References InflowHeight, MaxInflowParticleRadius, MinInflowParticleRadius, and MD::set_zmax().

Referenced by constructor(), ChuteBottom::make_rough_bottom(), readNextArgument(), and set_InitialHeight().

                                           {
                if (new_ >= MinInflowParticleRadius+MaxInflowParticleRadius)  { InflowHeight=new_; set_zmax(1.2*InflowHeight); } else cerr << "WARNING : Inflow height not changed to " << new_ << ", value must be greater than or equal to diameter of inflow particle" << endl;
        }

void Chute::set_InflowParticleRadius ( Mdouble new_ ) [inline]

Allows radius of inflow particles to be changed.

References MaxInflowParticleRadius, and MinInflowParticleRadius.

Referenced by constructor(), create_bottom(), and readNextArgument().

                                                   {
                if (new_>=0.0) {MinInflowParticleRadius=MaxInflowParticleRadius=new_;} else cerr << "WARNING : Inflow particle must be greater than or equal to zero" << endl;
        }

void Chute::set_InflowParticleRadius	(	Mdouble	new_min,
		Mdouble	new_max
	)		`[inline]`

Allows radius of inflow particles to be set to a range of values.

References MaxInflowParticleRadius, and MinInflowParticleRadius.

                                                                       {
                if (new_min>=0.0)     {MinInflowParticleRadius=new_min;} else cerr << "WARNING : Min. inflow particle radius must be nonnegative" << endl;
                if (new_max>=new_min) {MaxInflowParticleRadius=new_max;} else cerr << "WARNING : Max. inflow particle radius must be >= min. inflow particle radius" << endl;
        }

void Chute::set_InflowVelocity ( Mdouble new_ ) [inline]

Changes inflow velocity.

References InflowVelocity.

Referenced by constructor(), and set_InitialVelocity().

                                             {
                if (new_ >= 0.0) InflowVelocity=new_; else cerr << "WARNING : Inflow velocity not changed, value must be greater than or equal to zero" << endl;
        }

void Chute::set_InflowVelocityVariance ( Mdouble new_ ) [inline]

Changes inflow velocity variance.

References InflowVelocityVariance.

Referenced by constructor(), and set_InitialVelocityVariance().

                                                     {
                if (new_>=0.0&&new_<=1.0) InflowVelocityVariance=new_; else cerr << "WARNING : Inflow velocity variance not changed, value must be within [0,1]" << endl;
        }

void Chute::set_InitialHeight ( Mdouble new_ ) [inline]

References set_InflowHeight().

                                            {
                cerr << "WARNING : set_InitialHeight(Mdouble) is a deprecated function, use set_InflowHeight(Mdouble) instead." << endl;
                set_InflowHeight(new_);
        }

void Chute::set_InitialVelocity ( Mdouble new_ ) [inline]

References set_InflowVelocity().

                                              {
                cerr << "WARNING : set_InitialVelocity(Mdouble) is a deprecated function, use set_InflowVelocity(Mdouble) instead." << endl;
                set_InflowVelocity(new_);
        }

void Chute::set_InitialVelocityVariance ( Mdouble new_ ) [inline]

References set_InflowVelocityVariance().

                                                      {
                cerr << "WARNING : set_InitialVelocityVariance(Mdouble) is a deprecated function, use set_InflowVelocityVariance(Mdouble) instead." << endl;
                set_InflowVelocityVariance(new_);
        }

void Chute::set_max_failed ( unsigned int new_ ) [inline]

Allows radius of fixed particles to be changed.

References max_failed.

Referenced by constructor().

{max_failed = new_;}

void Chute::set_MaxInflowParticleRadius ( Mdouble new_max ) [inline]

References MaxInflowParticleRadius, and MinInflowParticleRadius.

                                                         {
                if (new_max>=MinInflowParticleRadius) {MaxInflowParticleRadius=new_max;} else cerr << "WARNING : Max. inflow particle radius must be >= min. inflow particle radius" << endl;
        }

void Chute::set_MinInflowParticleRadius ( Mdouble new_min ) [inline]

References MaxInflowParticleRadius, and MinInflowParticleRadius.

                                                         {
                if (new_min<=MaxInflowParticleRadius) {MinInflowParticleRadius=new_min;} else cerr << "WARNING : Max. inflow particle radius must be >= min. inflow particle radius" << endl;
        }

void Chute::set_RandomizedBottom ( int new_ ) [inline]

Changes RandomizedBottom.

References RandomizedBottom.

Referenced by constructor(), ChuteBottom::make_rough_bottom(), and readNextArgument().

{RandomizedBottom = new_;}

void Chute::setup_particles_initial_conditions ( ) [virtual]

initialize particle position, velocity, radius

This initially set up the particles///.

Reimplemented from MD.

Reimplemented in ChuteBottom, and ChuteWithHopper.

References create_bottom(), MD::get_ymax(), MD::get_ymin(), is_periodic, MD::set_NWall(), MD::set_NWallPeriodic(), MD::Walls, and MD::WallsPeriodic.

{
        //set side walls - solid if not a periodic
        if (is_periodic)
                {

                set_NWallPeriodic(1);
                set_NWall(0);
                WallsPeriodic[0].set(Vec3D( 0.0, 1.0, 0.0), get_ymin(), get_ymax());

                }
        else
                {

                set_NWallPeriodic(0);
                set_NWall(2);
                Walls[0].set(Vec3D( 0.0,-1.0, 0.0), -get_ymin());
                Walls[1].set(Vec3D( 0.0, 1.0, 0.0),  get_ymax());

                }

        //creates the bottom of the chute
        create_bottom();
}

void Chute::write ( std::ostream & os ) [virtual]

This function writes all chute data.

Reimplemented from HGRID_base.

Reimplemented in ChuteWithHopper.

References ChuteAngle, FixedParticleRadius, InflowHeight, InflowVelocity, InflowVelocityVariance, max_failed, MaxInflowParticleRadius, MinInflowParticleRadius, num_created, constants::pi, and RandomizedBottom.

                                 {
        HGRID_base::write(os);
        os<< "FixedParticleRadius " << FixedParticleRadius
  << " MinInflowParticleRadius " << MinInflowParticleRadius
  << " MaxInflowParticleRadius " << MaxInflowParticleRadius
  << endl
  << "RandomizedBottom " << RandomizedBottom
  << " ChuteAngle " << ChuteAngle/constants::pi*180.
  << " max_failed " << max_failed
  << " num_created " << num_created
  << endl
  << "InflowVelocity " << InflowVelocity
  << " InflowVelocityVariance " << InflowVelocityVariance
  << " InflowHeight " << InflowHeight
  << endl;
}
