This is the base class for both HGRID_2D and HGRID_3D. More...

#include <HGRID_base.h>

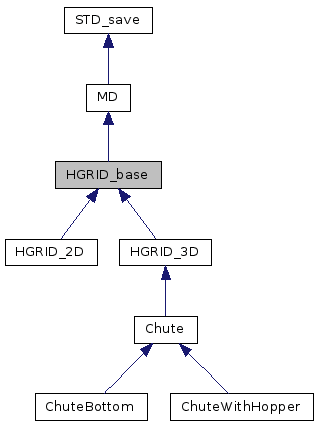

Inheritance diagram for HGRID_base:

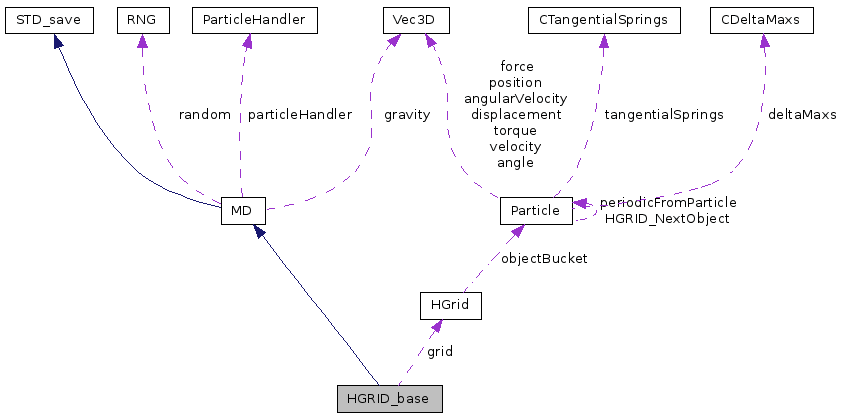

Collaboration diagram for HGRID_base:

Public Member Functions
	HGRID_base ()
	This is the default constructor. All it does is set senible defaults.
	~HGRID_base ()
	HGRID_base (MD &other)
	Copy-constructor for creates an HGRID problem from an existing MD problem.
void	constructor ()
	This is the actually constructor it is called do both constructors above.
void	HGRID_actions_before_time_loop ()
	This sets up the broad phase information, has to be done at this stage becuase it requires the partcle size.
void	HGRID_actions_before_time_step ()
	This resets all the bucket information.
void	set_HGRID_num_buckets (unsigned int new_num_buckets)
	This sets the number of buckets for the HGRID.
void	set_HGRID_num_buckets_to_power ()
	set number of buckets to the smallest power of two bigger than the number of particles
void	set_HGRID_num_buckets_to_power (unsigned int N)
	set number of buckets to the smallest power of two bigger than N
void	set_HGRID_max_levels (int new_max_levels)
	This sets the maximum number of levels for the HGRID.
void	set_HGRID_sphere_to_cell_ratio (Mdouble new_ratio)
	This sets the sphere to cell ratio for the HGRID. This raised to the power of dimension is the number of particles of cell size which could be in this cell.
void	set_HGRID_cell_to_cell_ratio (Mdouble new_ratio)
	This sets the ratio of the size of cells for the HGRID, note this is real NOT an integer.
void	read (std::istream &is)
	This function reads all HGRID data.
void	write (std::ostream &os)
	This function writes all HGRID data.
void	print (std::ostream &os, bool print_all=false)
	This function outputs all HGRID data.
Mdouble	get_CurrentMaxRelativeDisplacement ()
Mdouble	get_TotalCurrentMaxRelativeDisplacement ()
void	set_UpdateEachTimeStep (bool _new)
bool	get_HGRID_UpdateEachTimeStep ()
Protected Member Functions
void	InitBroadPhase ()
	This sets up the parameters required for the contact model.
void	HGRID_InsertParticleToHgrid (Particle *obj)
	Inserts a single Particle to current grid.
void	broad_phase (Particle *i)
	This makes the board_phase of contact point at the HGRID code.
virtual void	CheckObjAgainstGrid (HGrid grid, Particle obj)=0
	This is a purly virtual function that checks if an object is in the grid, this code is again dim dependent so purly virtual at this stage.
virtual bool	TestObject (Particle pI, Particle pJ)
	criterium for inserting a particle (returns false, if particles overlap;)
void	HGRID_update_move (Particle *iP, Mdouble move)
void	HGRID_actions_before_integration ()
void	HGRID_actions_after_integration ()
void	fix_hgrid ()
Protected Attributes
HGrid *	grid
Private Member Functions
void	set_HGRID_min_cell_size (Mdouble new_min_cell_size)
	This sets the minimum cell size for the HGRID. No point having this smaller than the smallest particle.
void	set_CELL_TO_CELL_RATIO (Mdouble new_CELL_TO_CELL_RATIO)
Private Attributes
Mdouble	currentMaxRelativeDisplacement
Mdouble	totalCurrentMaxRelativeDisplacement
bool	updateEachTimeStep
int	NUM_BUCKETS
int	HGRID_MAX_LEVELS
Mdouble	MIN_CELL_SIZE
Mdouble	SPHERE_TO_CELL_RATIO
Mdouble	CELL_TO_CELL_RATIO

Detailed Description

This is the base class for both HGRID_2D and HGRID_3D.

Note the actually abstrate grid is defined in the case Grid defined below

Todo:: Remove the dimension out of this class by templating and use of for loops for the check cells part

Constructor & Destructor Documentation

HGRID_base::HGRID_base ( ) [inline]

This is the default constructor. All it does is set senible defaults.

References constructor().

        {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "HGRID_base() finished"<<endl;
                #endif
        }

HGRID_base::~HGRID_base ( ) [inline]

References grid.

                      {
                if (grid) { delete grid; grid=NULL; }
        }

HGRID_base::HGRID_base ( MD & other ) [inline]

Copy-constructor for creates an HGRID problem from an existing MD problem.

References constructor().

                              : MD(other)
        {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "HGRID_base(MD& other) finished " << endl;
                #endif
        }

Member Function Documentation

void HGRID_base::broad_phase ( Particle * i ) [inline, protected, virtual]

This makes the board_phase of contact point at the HGRID code.

Reimplemented from MD.

References CheckObjAgainstGrid(), and grid.

{CheckObjAgainstGrid(grid, i);}

virtual void HGRID_base::CheckObjAgainstGrid	(	HGrid *	grid,
		Particle *	obj
	)		`[protected, pure virtual]`

This is a purly virtual function that checks if an object is in the grid, this code is again dim dependent so purly virtual at this stage.

Implemented in HGRID_3D, and HGRID_2D.

Referenced by broad_phase().

void HGRID_base::constructor ( )

This is the actually constructor it is called do both constructors above.

This is the actually constructor for this problem.

It is defined here because it is called by both the copy constructor and normal constructor

Set senible default values for all the required parameters

Reimplemented from MD.

Reimplemented in ChuteWithHopper, Chute, HGRID_3D, HGRID_2D, and ChuteBottom.

References CELL_TO_CELL_RATIO, grid, HGRID_MAX_LEVELS, MIN_CELL_SIZE, NUM_BUCKETS, SPHERE_TO_CELL_RATIO, and updateEachTimeStep.

Referenced by HGRID_base().

{
        NUM_BUCKETS=250000;
        HGRID_MAX_LEVELS=3;
        MIN_CELL_SIZE=0.1e-3;
        SPHERE_TO_CELL_RATIO=1.0;
        CELL_TO_CELL_RATIO=2.0;
        grid = NULL;
        updateEachTimeStep=true;
}

void HGRID_base::fix_hgrid ( ) [inline, protected]

References MD::get_LargestParticle(), MD::get_ParticleHandler(), MD::get_SmallestParticle(), set_CELL_TO_CELL_RATIO(), set_HGRID_max_levels(), set_HGRID_min_cell_size(), and set_HGRID_num_buckets_to_power().

                         {
                set_HGRID_min_cell_size(2.00001*get_SmallestParticle()->get_Radius());
                set_HGRID_max_levels(2);
                set_CELL_TO_CELL_RATIO(get_LargestParticle()->get_Radius()/get_SmallestParticle()->get_Radius());
                set_HGRID_num_buckets_to_power(get_ParticleHandler().get_NumberOfParticles());
        }

Mdouble HGRID_base::get_CurrentMaxRelativeDisplacement ( ) [inline]

References currentMaxRelativeDisplacement.

{return currentMaxRelativeDisplacement;}

bool HGRID_base::get_HGRID_UpdateEachTimeStep ( ) [inline, virtual]

Reimplemented from MD.

References updateEachTimeStep.

{return updateEachTimeStep;}

Mdouble HGRID_base::get_TotalCurrentMaxRelativeDisplacement ( ) [inline]

References totalCurrentMaxRelativeDisplacement.

{return totalCurrentMaxRelativeDisplacement;}

void HGRID_base::HGRID_actions_after_integration ( ) [inline, protected, virtual]

Reimplemented from MD.

References currentMaxRelativeDisplacement, and totalCurrentMaxRelativeDisplacement.

{totalCurrentMaxRelativeDisplacement+=2.0*currentMaxRelativeDisplacement;}

void HGRID_base::HGRID_actions_before_integration ( ) [inline, protected, virtual]

Reimplemented from MD.

References currentMaxRelativeDisplacement.

{currentMaxRelativeDisplacement=0;}

void HGRID_base::HGRID_actions_before_time_loop ( ) [inline, virtual]

This sets up the broad phase information, has to be done at this stage becuase it requires the partcle size.

Reimplemented from MD.

References InitBroadPhase().

Referenced by Chute::create_bottom(), and ChuteBottom::setup_particles_initial_conditions().

{InitBroadPhase();}

void HGRID_base::HGRID_actions_before_time_step ( ) [virtual]

This resets all the bucket information.

This is the actions before the time step, it basically compute which cell each particle is in.

Reimplemented from MD.

References HGrid::bucketIsChecked, ParticleHandler::end(), MD::get_ParticleHandler(), grid, MD::HGRID_UpdateParticleInHgrid(), HGrid::NUM_BUCKETS, HGrid::objectBucket, SPHERE_TO_CELL_RATIO, totalCurrentMaxRelativeDisplacement, and updateEachTimeStep.

Referenced by Chute::create_bottom().

{
        static int stepsBeforeUpdate=0;

        for (int i=0; i<grid->NUM_BUCKETS; i++)
        {
                grid->bucketIsChecked[i]        = false;
        }

        if(updateEachTimeStep||totalCurrentMaxRelativeDisplacement>=SPHERE_TO_CELL_RATIO-1)
        {
                for (int i=0; i<grid->NUM_BUCKETS; i++)
                {
                        grid->objectBucket[i]           = NULL;
                }
                totalCurrentMaxRelativeDisplacement=0;
                for (vector<Particle*>::iterator it = get_ParticleHandler().begin(); it!=get_ParticleHandler().end(); ++it)
                {
                        //(*it)->set_HGRID_NextObject(NULL);
                        HGRID_UpdateParticleInHgrid(*it);
                }
                //if(!updateEachTimeStep) cout<<"New HGRID Update after: "<<stepsBeforeUpdate<<" timesteps"<<endl;
                stepsBeforeUpdate=0;
        }
        else
        {
                stepsBeforeUpdate++;
                //cout<<endl<<"No grid update"<<endl;
        }
}

void HGRID_base::HGRID_InsertParticleToHgrid ( Particle * obj ) [protected]

Inserts a single Particle to current grid.

References grid, and HGrid::InsertParticleToHgrid().

{
        grid->InsertParticleToHgrid(obj);
}

void HGRID_base::HGRID_update_move	(	Particle *	iP,
		Mdouble	move
	)		`[inline, protected, virtual]`

Reimplemented from MD.

References HGrid::CELL_TO_CELL_RATIO, currentMaxRelativeDisplacement, Particle::get_HGRID_Level(), grid, and HGrid::MIN_CELL_SIZE.

        {
                Mdouble currentRelativeDisplacement=move/(grid->MIN_CELL_SIZE*pow(grid->CELL_TO_CELL_RATIO,iP->get_HGRID_Level()));
                if(currentRelativeDisplacement>currentMaxRelativeDisplacement) currentMaxRelativeDisplacement=currentRelativeDisplacement;
        };

void HGRID_base::InitBroadPhase ( ) [protected, virtual]

This sets up the parameters required for the contact model.

This set up the Broad grid.

Todo:: {The 6 Particle code does behave badly if MIN_CELL_SIZE=2.0*get_radius_of_smallest_particle(). Can a particle fall of out all cells?}

Reimplemented from MD.

References HGrid::bucketIsChecked, CELL_TO_CELL_RATIO, ParticleHandler::end(), MD::get_ParticleHandler(), MD::get_SmallestParticle(), grid, HGRID_MAX_LEVELS, MD::HGRID_UpdateParticleInHgrid(), HGrid::Initialize_inv_size(), HGrid::InsertParticleToHgrid(), MIN_CELL_SIZE, HGrid::NUM_BUCKETS, NUM_BUCKETS, HGrid::objectBucket, HGrid::occupiedLevelsMask, set_HGRID_min_cell_size(), and SPHERE_TO_CELL_RATIO.

Referenced by HGRID_actions_before_time_loop().

{
        //Set the smallest Hgrid size based on the smallest particle
        set_HGRID_min_cell_size(2.0*get_SmallestParticle()->get_Radius()*SPHERE_TO_CELL_RATIO);

        //cout << "Smallest particle size is : "<< get_radius_of_smallest_particle() <<endl;
        //cout << "Largest particle size is : " << get_radius_of_largest_particle() << endl;

        //Create grid object
        if (grid!=NULL) delete grid;
        grid = new HGrid(NUM_BUCKETS, HGRID_MAX_LEVELS, MIN_CELL_SIZE, SPHERE_TO_CELL_RATIO, CELL_TO_CELL_RATIO);

        grid->occupiedLevelsMask = 0;

        grid->Initialize_inv_size();

        //grid->InitializeMaxMinCellPos(get_xmin(), get_ymin(), get_zmin(), get_xmax(), get_ymax(), get_zmax());


        //New steps in initbroad_phase is to not only Insert the Particles in the grid but also update them
        for (int i=0; i<grid->NUM_BUCKETS; i++)
        {
                grid->objectBucket[i]           = NULL;
                grid->bucketIsChecked[i]        = false;
        }

        for (vector<Particle*>::iterator it = get_ParticleHandler().begin(); it!=get_ParticleHandler().end(); ++it)
        {
                grid->InsertParticleToHgrid(*it);
                HGRID_UpdateParticleInHgrid(*it);
        }
}

void HGRID_base::print	(	std::ostream &	os,
		bool	print_all = `false`
	)		`[inline, virtual]`

This function outputs all HGRID data.

Reimplemented from MD.

Reimplemented in Chute.

References CELL_TO_CELL_RATIO, HGRID_MAX_LEVELS, MIN_CELL_SIZE, NUM_BUCKETS, and SPHERE_TO_CELL_RATIO.

  {
                MD::print(os,print_all);
                os << " NUM_BUCKETS:" << NUM_BUCKETS << ", HGRID_MAX_LEVELS:" << HGRID_MAX_LEVELS << ", MIN_CELL_SIZE:" << MIN_CELL_SIZE << ", " << endl
                   << " SPHERE_TO_CELL_RATIO:" << SPHERE_TO_CELL_RATIO << ", CELL_TO_CELL_RATIO:" << CELL_TO_CELL_RATIO << endl;
  }

void HGRID_base::read ( std::istream & is ) [inline, virtual]

This function reads all HGRID data.

Reimplemented from MD.

Reimplemented in ChuteWithHopper, and Chute.

References CELL_TO_CELL_RATIO, MD::get_restart_version(), HGRID_MAX_LEVELS, MIN_CELL_SIZE, NUM_BUCKETS, and SPHERE_TO_CELL_RATIO.

        {
                MD::read(is);


                //read out the full line first, so if there is an error it does not affect the read of the next line
                string line_string;
                getline(is,line_string);
                stringstream line (stringstream::in | stringstream::out);
                line << line_string;

                if (get_restart_version()==1) {
                line >> NUM_BUCKETS >> HGRID_MAX_LEVELS >> MIN_CELL_SIZE >> SPHERE_TO_CELL_RATIO >> CELL_TO_CELL_RATIO;
                } else {
      string dummy;
        line>> dummy >> NUM_BUCKETS
        >> dummy >> HGRID_MAX_LEVELS
        >> dummy >> MIN_CELL_SIZE
        >> dummy >> SPHERE_TO_CELL_RATIO
        >> dummy >> CELL_TO_CELL_RATIO;
    }
        }

void HGRID_base::set_CELL_TO_CELL_RATIO ( Mdouble new_CELL_TO_CELL_RATIO ) [inline, private]

References CELL_TO_CELL_RATIO.

Referenced by fix_hgrid().

{if (new_CELL_TO_CELL_RATIO>0){CELL_TO_CELL_RATIO=new_CELL_TO_CELL_RATIO;}}

void HGRID_base::set_HGRID_cell_to_cell_ratio ( Mdouble new_ratio ) [inline]

This sets the ratio of the size of cells for the HGRID, note this is real NOT an integer.

References CELL_TO_CELL_RATIO.

Referenced by ChuteBottom::setup_particles_initial_conditions().

{if (new_ratio>0){CELL_TO_CELL_RATIO=new_ratio;}}

void HGRID_base::set_HGRID_max_levels ( int new_max_levels ) [inline]

This sets the maximum number of levels for the HGRID.

References HGRID_MAX_LEVELS.

Referenced by fix_hgrid(), and ChuteBottom::setup_particles_initial_conditions().

{if (new_max_levels>0){HGRID_MAX_LEVELS=new_max_levels;}}

void HGRID_base::set_HGRID_min_cell_size ( Mdouble new_min_cell_size ) [inline, private]

This sets the minimum cell size for the HGRID. No point having this smaller than the smallest particle.

References MIN_CELL_SIZE.

Referenced by fix_hgrid(), and InitBroadPhase().

{if (new_min_cell_size>0){MIN_CELL_SIZE=new_min_cell_size;}}

void HGRID_base::set_HGRID_num_buckets ( unsigned int new_num_buckets ) [inline]

This sets the number of buckets for the HGRID.

References NUM_BUCKETS.

Referenced by set_HGRID_num_buckets_to_power().

{if (new_num_buckets>0) NUM_BUCKETS=new_num_buckets; else {cerr << "Error in set_HGRID_num_buckets" << endl; exit(-1);}}

void HGRID_base::set_HGRID_num_buckets_to_power ( ) [inline]

set number of buckets to the smallest power of two bigger than the number of particles

References MD::get_ParticleHandler(), and set_HGRID_num_buckets_to_power().

Referenced by fix_hgrid(), set_HGRID_num_buckets_to_power(), and ChuteBottom::setup_particles_initial_conditions().

{ set_HGRID_num_buckets_to_power(get_ParticleHandler().get_NumberOfParticles());        }

void HGRID_base::set_HGRID_num_buckets_to_power ( unsigned int N ) [inline]

set number of buckets to the smallest power of two bigger than N

References NUM_BUCKETS, and set_HGRID_num_buckets().

                                                           {
                unsigned int NUM_BUCKETS = 32;
                while (NUM_BUCKETS<2*N) NUM_BUCKETS *= 2;
                set_HGRID_num_buckets(NUM_BUCKETS);
        }

void HGRID_base::set_HGRID_sphere_to_cell_ratio ( Mdouble new_ratio ) [inline]

This sets the sphere to cell ratio for the HGRID. This raised to the power of dimension is the number of particles of cell size which could be in this cell.

References SPHERE_TO_CELL_RATIO.

{if (new_ratio>0){SPHERE_TO_CELL_RATIO=new_ratio;}}

void HGRID_base::set_UpdateEachTimeStep ( bool _new ) [inline]

References updateEachTimeStep.

{updateEachTimeStep=_new;}

virtual bool HGRID_base::TestObject	(	Particle *	pI,
		Particle *	pJ
	)		`[inline, protected, virtual]`

criterium for inserting a particle (returns false, if particles overlap;)

References Particle::get_Index(), Particle::get_Position(), Particle::get_Radius(), and sqr.

Referenced by HGRID_2D::TestCell(), and HGRID_3D::TestCell().

                                                            {
                //PI==PJ check is required because this function is called for all possible close Particle combination (even itself)
                return pI->get_Index()==pJ->get_Index() || GetDistance2(pI->get_Position(),pJ->get_Position())>=sqr(pI->get_Radius()+pJ->get_Radius());
        }

void HGRID_base::write ( std::ostream & os ) [inline, virtual]

This function writes all HGRID data.

Reimplemented from MD.

Reimplemented in ChuteWithHopper, and Chute.

References CELL_TO_CELL_RATIO, HGRID_MAX_LEVELS, MIN_CELL_SIZE, NUM_BUCKETS, and SPHERE_TO_CELL_RATIO.

        {
                MD::write(os);
                os      << "NUM_BUCKETS " << NUM_BUCKETS << " "
                        << "HGRID_MAX_LEVELS " << HGRID_MAX_LEVELS << " "
                        << "MIN_CELL_SIZE " << MIN_CELL_SIZE << " "
                        << "SPHERE_TO_CELL_RATIO " << SPHERE_TO_CELL_RATIO  << " "
                        << "CELL_TO_CELL_RATIO " << CELL_TO_CELL_RATIO << endl;
        }
