ChuteWithHopper has a hopper as inflow. More...
#include <ChuteWithHopper.h>
Public Member Functions | |
| ChuteWithHopper (Chute &other) | |
| This is a copy constructor for Chute problems. | |
| ChuteWithHopper (HGRID_3D &other) | |
| ChuteWithHopper (HGRID_base &other) | |
| ChuteWithHopper (MD &other) | |
| ChuteWithHopper () | |
| This is the default constructor. | |
| void | constructor () |
| This is the actually constructor, get called by all constructors above. | |
| void | set_HopperFillPercentage (Mdouble new_fill) |
| virtual void | setup_particles_initial_conditions () |
| initialize particle position, velocity, radius | |
| void | add_hopper () |
| This create the hopper on top of the chute, see diagram in class description for details of the points. | |
| virtual void | create_inflow_particle () |
| This creates an inflow particle in the top 50% of the hopper i.e. | |
| void | set_Hopper (Mdouble ExitLength, Mdouble ExitHeight, Mdouble Angle, Mdouble Length) |
| Mdouble | get_MaximumVelocityInducedByGravity () |
| Allows chute length to be accessed. | |
| Mdouble | get_ChuteLength () |
| Allows chute length to be accessed. | |
| void | set_ChuteLength (Mdouble new_) |
| Allows chute length to be changed. | |
| void | set_centerHopper (bool new_) |
| void | set_lowerFillHeight (Mdouble new_) |
| void | set_shift (Mdouble new_) |
| virtual void | read (std::istream &is) |
| This function reads all chute data. | |
| virtual void | write (std::ostream &os) |
| This function writes all chute data. | |
| virtual void | print (std::ostream &os) |
| void | lift_hopper (Mdouble distance) |
| This lifts the hopper above the plane of the chute. | |
| Mdouble | get_lift_hopper () |
| void | set_hopper_dim (Mdouble new_hopper_dim) |
| void | set_align_base (bool new_align) |
| int | readNextArgument (unsigned int &i, unsigned int argc, char *argv[]) |
Protected Attributes | |
| Mdouble | HopperLength |
| Dimension of the hopper in vertical direction. | |
| Mdouble | HopperHeight |
| Dimension of the hopper in horizontal direction. | |
| Mdouble | HopperAngle |
| Angle between the two pieces of the hopper walls. | |
| Mdouble | HopperExitLength |
| Dimension of the hopper exit in vertical direction. | |
| Mdouble | HopperExitHeight |
| Dimension of the hopper exit in vertical direction. | |
| Mdouble | shift |
| The x position where the Chute starts (defined as the beginning of the hopper) | |
| Mdouble | lowerFillHeight |
| Relative height (in [0,1)) above which teh hopper is replenished with new particles. | |
| bool | centerHopper |
| If theis flag is set, the hopper will be constructed in the xy-center of the domain, and not next to the xmin-domain boundary; by default off. | |
Private Attributes | |
| Mdouble | lift |
| This is the vertical distance the chute is lifted above the plane. | |
| unsigned int | hopper_dim |
| This is the dimension of the hopper, my default it is one dimensional and hence does not have side wall. | |
| bool | align_base |
| This is the flag, which sets if the chute bottom is aligned with the hopper, by default it is. | |
| Mdouble | fill_percent |
| This is which percentage of the hopper is used for creating new partices;. | |
ChuteWithHopper has a hopper as inflow.

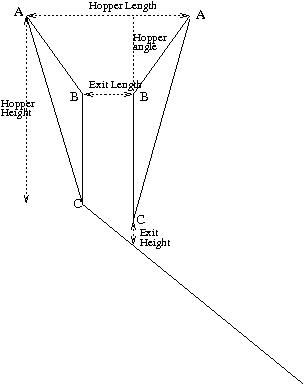

The hopper has two parts as follows to create the finite hopper walls, we take vector between two wall points in xz-plane, then rotate clockwise and make unit length.
A,B,C denote three points on the left and right hopper walls which are used to construct the hopper shift denotes the space by which the chute has to be shifted to the right such that the hopper is in the domain Note the wall direction has to be set seperately either period of walls.
| ChuteWithHopper::ChuteWithHopper | ( | Chute & | other | ) | [inline] |
This is a copy constructor for Chute problems.
References constructor().
: MD(other), Chute(other) {constructor();}
| ChuteWithHopper::ChuteWithHopper | ( | HGRID_3D & | other | ) | [inline] |
References constructor().
: MD(other), Chute(other) {constructor();}
| ChuteWithHopper::ChuteWithHopper | ( | HGRID_base & | other | ) | [inline] |
References constructor().
: MD(other), Chute(other) {constructor();}
| ChuteWithHopper::ChuteWithHopper | ( | MD & | other | ) | [inline] |
References constructor().
: MD(other), Chute(other) {constructor();}
| ChuteWithHopper::ChuteWithHopper | ( | ) | [inline] |
| void ChuteWithHopper::add_hopper | ( | ) | [inline] |
This create the hopper on top of the chute, see diagram in class description for details of the points.
References centerHopper, Chute::ChuteAngle, ParticleHandler::end(), Chute::get_ChuteAngle(), MD::get_NWall(), MD::get_ParticleHandler(), Particle::get_Radius(), MD::get_ymax(), MD::get_ymin(), Vec3D::GetLength2, hopper_dim, HopperAngle, HopperExitHeight, HopperExitLength, HopperHeight, HopperLength, lift, Chute::P0, MD::set_NWall(), set_shift(), MD::set_zmax(), shift, MD::Walls, Vec3D::X, and Vec3D::Z.
Referenced by setup_particles_initial_conditions().
{
//hopper walls
int n = get_NWall();
set_NWall(n+2);
//to create the finite hopper walls, we take vector between two wall points in xz-plane, then rotate clockwise and make unit length
// A\ /A
// \ / A,B,C denote three points on the left and right hopper walls which are used to construct the hopper
// \ / shift denotes the space by which the chute has to be shifted to the right such that the hopper is in the domain
// B| |B
// | |
// | |
// C| |C
Vec3D A, B, C, temp, normal;
Mdouble s = sin(get_ChuteAngle());
Mdouble c = cos(get_ChuteAngle());
Mdouble HopperLowestPoint = HopperExitHeight - HopperExitLength * tan(ChuteAngle);
HopperHeight = HopperLowestPoint + 1.1 * 0.5*(HopperLength+HopperExitLength) / tan(HopperAngle);
Mdouble HopperCornerHeight = HopperHeight - 0.5*(HopperLength-HopperExitLength) / tan(HopperAngle);
if (HopperCornerHeight<=0.0) { HopperHeight += -HopperCornerHeight + P0.get_Radius(); HopperCornerHeight = P0.get_Radius(); }
//first we create the left hopper wall
//coordinates of A,B,C in (vertical parallel to flow,vertical normal to flow, horizontal) direction
A = Vec3D(-0.5*(HopperLength-HopperExitLength), 0.0, HopperHeight);
B = Vec3D(0.0, 0.0, HopperCornerHeight);
C = Vec3D(0.0, 0.0, 0.0);
//now rotate the coordinates of A,B,C to be in (x,y,z) direction
A = Vec3D(c*A.X-s*A.Z, 0.0, s*A.X+c*A.Z);
B = Vec3D(c*B.X-s*B.Z, 0.0, s*B.X+c*B.Z);
C = Vec3D(c*C.X-s*C.Z, 0.0, s*C.X+c*C.Z);
// the position of A determines shift and zmax
if (centerHopper) set_shift(-A.X+40);
else set_shift(-A.X);
set_zmax(A.Z);
A.X +=shift;
B.X +=shift;
C.X +=shift;
//This lifts the hopper a distance above the chute
A.Z+=lift;
B.Z+=lift;
C.Z+=lift;
//create a finite wall from B to A and from C to B
temp = B-A;
normal = Vec3D(temp.Z,0.0,-temp.X) / sqrt(temp.GetLength2());
Walls[n].add_finite_wall(normal, Dot(normal,A));
temp = C-B;
normal = Vec3D(temp.Z,0.0,-temp.X) / sqrt(temp.GetLength2());
Walls[n].add_finite_wall(normal, Dot(normal,B));
temp = A-C;
normal = Vec3D(temp.Z,0.0,-temp.X)/sqrt(temp.GetLength2());
Walls[n].add_finite_wall(normal,Dot(normal,C));
//next, do the same for the right wall
A = Vec3D(HopperLength-0.5*(HopperLength-HopperExitLength), 0.0, HopperHeight);
B = Vec3D(0.5*(HopperLength+HopperExitLength)-0.5*(HopperLength-HopperExitLength), 0.0, HopperCornerHeight);
C = Vec3D(0.5*(HopperLength+HopperExitLength)-0.5*(HopperLength-HopperExitLength), 0.0, HopperLowestPoint);
//This rotates the right points
A = Vec3D(c*A.X-s*A.Z+shift, 0.0, s*A.X+c*A.Z);
B = Vec3D(c*B.X-s*B.Z+shift, 0.0, s*B.X+c*B.Z);
C = Vec3D(c*C.X-s*C.Z+shift, 0.0, s*C.X+c*C.Z);
//This lifts the hopper a distance above the chute
A.Z+=lift;
B.Z+=lift;
C.Z+=lift;
temp = A-B;
normal = Vec3D(temp.Z,0.0,-temp.X) / sqrt(temp.GetLength2());
Walls[n+1].add_finite_wall(normal, Dot(normal,A));
temp = B-C;
normal = Vec3D(temp.Z,0.0,-temp.X) / sqrt(temp.GetLength2());
Walls[n+1].add_finite_wall(normal, Dot(normal,B));
temp = C-A;
normal = Vec3D(temp.Z,0.0,-temp.X) / sqrt(temp.GetLength2());
Walls[n+1].add_finite_wall(normal, Dot(normal,C));
set_zmax(A.Z);
if (hopper_dim == 2)
{
set_NWall(n+4);
//coordinates of A,B,C in (vertical parallel to flow,vertical normal to flow, horizontal) direction
A = Vec3D(0.0, (get_ymax()-get_ymin()-HopperLength)/2.0, HopperHeight);
B = Vec3D(0.0, (get_ymax()-get_ymin()-HopperExitLength)/2.0, HopperCornerHeight);
C = Vec3D(0.0, (get_ymax()-get_ymin()-HopperExitLength)/2.0, 0.0);
//now rotate the coordinates of A,B,C to be in (x,y,z) direction
A = Vec3D(c*A.X-s*A.Z, A.Y, s*A.X+c*A.Z);
B = Vec3D(c*B.X-s*B.Z, B.Y, s*B.X+c*B.Z);
C = Vec3D(c*C.X-s*C.Z, C.Y, s*C.X+c*C.Z);
// the position of A determines shift and zmax
A.X +=shift;
B.X +=shift;
C.X +=shift;
//This lifts the hopper a distance above the chute
A.Z+=lift;
B.Z+=lift;
C.Z+=lift;
//create a finite wall from B to A and from C to B
temp = B-A;
normal=Cross(Vec3D(-c,0,-s),temp)/sqrt(temp.GetLength2());
//normal = Vec3D(0.0,temp.Z,-temp.Y) / sqrt(temp.GetLength2());
Walls[n+2].add_finite_wall(normal, Dot(normal,A));
temp = C-B;
//normal = Vec3D(0.0,temp.Z,-temp.Y) / sqrt(temp.GetLength2());
normal=Cross(Vec3D(-c,0,-s),temp)/sqrt(temp.GetLength2());
Walls[n+2].add_finite_wall(normal, Dot(normal,B));
temp = A-C;
//normal = Vec3D(0.0,temp.Z,-temp.Y)/sqrt(temp.GetLength2());
normal=Cross(Vec3D(-c,0,-s),temp)/sqrt(temp.GetLength2());
Walls[n+2].add_finite_wall(normal,Dot(normal,C));
//Now for the right y-wall
A = Vec3D(0.0, (get_ymax()-get_ymin()+HopperLength)/2.0,HopperHeight);
B = Vec3D(0.0, (get_ymax()-get_ymin()+HopperExitLength)/2.0,HopperCornerHeight);
C = Vec3D(0.0, (get_ymax()-get_ymin()+HopperExitLength)/2.0,0.0);
//now rotate the coordinates of A,B,C to be in (x,y,z) direction
A = Vec3D(c*A.X-s*A.Z, A.Y, s*A.X+c*A.Z);
B = Vec3D(c*B.X-s*B.Z, B.Y, s*B.X+c*B.Z);
C = Vec3D(c*C.X-s*C.Z, C.Y, s*C.X+c*C.Z);
// the position of A determines shift and zmax
A.X +=shift;
B.X +=shift;
C.X +=shift;
//This lifts the hopper a distance above the chute
A.Z+=lift;
B.Z+=lift;
C.Z+=lift;
//create a finite wall from B to A and from C to B
temp = A-B;
normal=Cross(Vec3D(-c,0,-s),temp)/sqrt(temp.GetLength2());
//normal = Vec3D(0.0,-temp.Z,temp.Y) / sqrt(temp.GetLength2());
Walls[n+3].add_finite_wall(normal, Dot(normal,A));
temp = B-C;
//normal = Vec3D(0.0,-temp.Z,temp.Y) / sqrt(temp.GetLength2());
normal=Cross(Vec3D(-c,0,-s),temp)/sqrt(temp.GetLength2());
Walls[n+3].add_finite_wall(normal, Dot(normal,B));
temp = C-A;
//normal = Vec3D(0.0,-temp.Z,temp.Y)/sqrt(temp.GetLength2());
normal=Cross(Vec3D(-c,0,-s),temp)/sqrt(temp.GetLength2());
Walls[n+3].add_finite_wall(normal,Dot(normal,C));
}
//now shift the fixed particles at the bottom so that they begin where the chute begins
for (vector<Particle*>::iterator it= get_ParticleHandler().begin(); it!=get_ParticleHandler().end(); ++it) {
(*it)->get_Position().X+=shift;
#ifdef USE_SIMPLE_VERLET_INTEGRATION
(*it)->PrevPosition.X +=shift;
#endif
}
}
| void ChuteWithHopper::constructor | ( | ) | [inline] |
This is the actually constructor, get called by all constructors above.
Reimplemented from Chute.
References align_base, centerHopper, fill_percent, hopper_dim, lift, lowerFillHeight, set_Hopper(), and shift.
Referenced by ChuteWithHopper().
{
lowerFillHeight=0.5;
lift=0.0;
set_Hopper(0.01, 0.01, 60.0, 0.08);
shift = 0.0;
hopper_dim=1;
align_base=true;
fill_percent=50.0;
centerHopper=false;
}
| virtual void ChuteWithHopper::create_inflow_particle | ( | ) | [inline, virtual] |

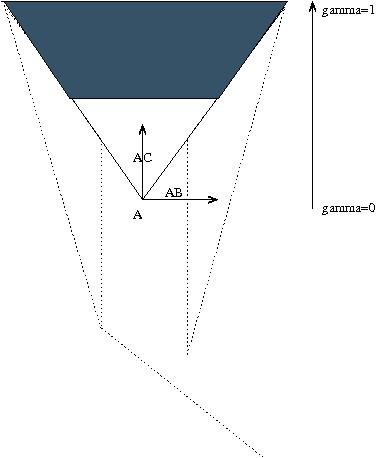

This creates an inflow particle in the top 50% of the hopper i.e.
between gamma=0.5 and gamma=1.0 Gamma is random number in the z direction and delta in the y direction In the 2D (hopper) case the particles are generated with equal probability in the y-direction, i.e. delta is from the edge of the domain In the 3D (hopper) case a third vector AD is generated and delta is again created for the sloping walls of the hopper
Reimplemented from Chute.
References centerHopper, Particle::compute_particle_mass(), fill_percent, mathsFunc::gamma(), Chute::get_ChuteAngle(), Particle::get_Position(), Particle::get_Radius(), RNG::get_RN(), MD::get_ymax(), MD::get_ymin(), hopper_dim, HopperAngle, HopperExitLength, HopperHeight, HopperLength, lift, Chute::MaxInflowParticleRadius, Chute::MinInflowParticleRadius, Chute::P0, MD::random, Particle::set_Position(), Particle::set_Radius(), MD::Species, and Vec3D::Z.
{
//use this formula to obtain bidispersed particles
//P0.Radius = random(0.0,1.0)<0.1?MinInflowParticleRadius:MaxInflowParticleRadius;
//the following formula yields polydispersed particle radii:
P0.set_Radius(random.get_RN(MinInflowParticleRadius,MaxInflowParticleRadius));
P0.compute_particle_mass(Species);
//Define a orthogonal coordinate system this is usful in the hopper, see diagram in html documentation for details.
static Mdouble s = sin(get_ChuteAngle());
static Mdouble c = cos(get_ChuteAngle());
static Mdouble Ht = tan(HopperAngle);
static Mdouble Hc = cos(HopperAngle);
static Vec3D AB = Vec3D(c,0.0,s);
static Vec3D AC = Vec3D(-s,0.0,c);
static Vec3D AD = Vec3D(0.0,1.0,0.0);
//Point A is located in the centre of the hopper.
static Vec3D A = Vec3D
(
centerHopper?40:0.0,
(get_ymax()-get_ymin())/2.0,
s*(-0.5*(HopperLength-HopperExitLength)) + c*HopperHeight
)
+ AB*0.5*HopperLength
+ AC*(-0.5*HopperLength/Ht);
Mdouble gamma = random.get_RN((100.0-fill_percent)/100.0,1.0);
// Mdouble gamma = random(lowerFillHeight,1.0);
Mdouble delta;
if (hopper_dim==1)
{
//For the one dimensional delta is a random distance between the two walls the -minus 2 particle radii is to stop
//delta = random(ymin+P0.Radius,ymax-P0.Radius);
delta = random.get_RN(-0.5,0.5)*(get_ymax()-get_ymin()-2.0*P0.get_Radius());
}
else
{
delta= (random.get_RN(-1.0,1.0)*(0.5*gamma*HopperLength -P0.get_Radius()/Hc));
}
P0.set_Position( A
+ AC * (gamma*0.5*HopperLength/Ht)
+ AB * (random.get_RN(-1.0,1.0)*(0.5*gamma*HopperLength - P0.get_Radius()/Hc))
+ AD*delta);
P0.get_Position().Z+=lift;
//P0.Position.Y = random(ymin+P0.Radius, ymax-P0.Radius);
//P0.Position.Y=delta;
}
| Mdouble ChuteWithHopper::get_ChuteLength | ( | ) | [inline] |
| Mdouble ChuteWithHopper::get_lift_hopper | ( | ) | [inline] |
Allows chute length to be accessed.
References Chute::ChuteAngle, MD::get_xmax(), HopperHeight, and shift.
{
Mdouble height = HopperHeight+(get_xmax()-shift)*sin(ChuteAngle);
return sqrt(2.0*9.8*height);
}
| void ChuteWithHopper::lift_hopper | ( | Mdouble | distance | ) | [inline] |
| virtual void ChuteWithHopper::print | ( | std::ostream & | os | ) | [inline, virtual] |
References HopperAngle, HopperExitHeight, HopperExitLength, HopperHeight, and HopperLength.
{
Chute::print(os);
os
<< ", HopperExitLength:" << HopperExitLength
<< ", HopperExitHeight:" << HopperExitHeight
<< ", HopperLength:" << HopperLength
<< ", HopperAngle:" << HopperAngle
<< ", HopperHeight:" << HopperHeight
<< endl;
}
| virtual void ChuteWithHopper::read | ( | std::istream & | is | ) | [inline, virtual] |
This function reads all chute data.
Reimplemented from Chute.
References HopperAngle, HopperExitHeight, HopperExitLength, HopperHeight, HopperLength, and shift.
{
Chute::read(is);
is >> HopperExitLength >> HopperExitHeight >> HopperLength
>> HopperAngle >> HopperHeight >> shift;
}
| int ChuteWithHopper::readNextArgument | ( | unsigned int & | i, |
| unsigned int | argc, | ||
| char * | argv[] | ||
| ) | [inline, virtual] |
Reimplemented from Chute.
References align_base, centerHopper, HopperAngle, HopperExitHeight, HopperExitLength, HopperHeight, HopperLength, lift, lowerFillHeight, and shift.
{
if (!strcmp(argv[i],"-hopperLength")) {
HopperLength=(atof(argv[i+1]));
} else if (!strcmp(argv[i],"-hopperHeight")) {
HopperHeight=(atof(argv[i+1]));
} else if (!strcmp(argv[i],"-hopperAngle")) {
HopperAngle=(atof(argv[i+1]));
} else if (!strcmp(argv[i],"-hopperExitLength")) {
HopperExitLength=(atof(argv[i+1]));
} else if (!strcmp(argv[i],"-hopperExitHeight")) {
HopperExitHeight=(atof(argv[i+1]));
} else if (!strcmp(argv[i],"-lowerFillHeight")) {
lowerFillHeight=(atof(argv[i+1]));
} else if (!strcmp(argv[i],"-centerHopper")) {
centerHopper=(atoi(argv[i+1]));
} else if (!strcmp(argv[i],"-alignBase")) {
align_base=(atoi(argv[i+1]));
} else if (!strcmp(argv[i],"-shift")) {
shift=(atof(argv[i+1]));
} else if (!strcmp(argv[i],"-lift")) {
lift=(atof(argv[i+1]));
} else return Chute::readNextArgument(i, argc, argv); //if argv[i] is not found, check the commands in Chute
return true; //returns true if argv[i] is found
}
| void ChuteWithHopper::set_align_base | ( | bool | new_align | ) | [inline] |
References align_base.
{align_base=new_align;}
| void ChuteWithHopper::set_centerHopper | ( | bool | new_ | ) | [inline] |
References centerHopper.
{centerHopper=new_; }
| void ChuteWithHopper::set_ChuteLength | ( | Mdouble | new_ | ) | [inline, virtual] |
Allows chute length to be changed.
Reimplemented from Chute.
References MD::set_xmax(), MD::set_xmin(), and shift.
| void ChuteWithHopper::set_Hopper | ( | Mdouble | ExitLength, |
| Mdouble | ExitHeight, | ||
| Mdouble | Angle, | ||
| Mdouble | Length | ||
| ) | [inline] |
References HopperAngle, HopperExitHeight, HopperExitLength, HopperLength, and constants::pi.
Referenced by constructor().
{
if (ExitLength>=0.0) {HopperExitLength = ExitLength;} else cerr << "WARNING : Hopper exit length must be greater than or equal to zero" << endl;
if (ExitHeight>=0.0) {HopperExitHeight = ExitHeight;} else cerr << "WARNING : Hopper exit height must be greater than or equal to zero" << endl;
if (Angle>0.0&&Angle<90.0) {HopperAngle = Angle*constants::pi/180.0;} else cerr << "WARNING : Hopper angle must in (0,90)" << endl;
if (Length>ExitLength) {HopperLength = Length;} else cerr << "WARNING : Hopper length must be greater than exit length" << endl;
}
| void ChuteWithHopper::set_hopper_dim | ( | Mdouble | new_hopper_dim | ) | [inline] |
References hopper_dim.
{hopper_dim=new_hopper_dim;}
| void ChuteWithHopper::set_HopperFillPercentage | ( | Mdouble | new_fill | ) | [inline] |
References fill_percent.
{fill_percent=new_fill;}
| void ChuteWithHopper::set_lowerFillHeight | ( | Mdouble | new_ | ) | [inline] |
References lowerFillHeight.
{lowerFillHeight=new_; }
| void ChuteWithHopper::set_shift | ( | Mdouble | new_ | ) | [inline] |
References MD::get_xmax(), MD::set_xmax(), and shift.
Referenced by add_hopper().
| virtual void ChuteWithHopper::setup_particles_initial_conditions | ( | ) | [inline, virtual] |
initialize particle position, velocity, radius
This initially set up the particles///.
Reimplemented from Chute.
References add_hopper().
{
Chute::setup_particles_initial_conditions();
//cout << shift << " " << get_xmax() << " " << get_ParticleHandler().get_NumberOfParticles() << endl;
add_hopper();
}
| virtual void ChuteWithHopper::write | ( | std::ostream & | os | ) | [inline, virtual] |
This function writes all chute data.
Reimplemented from Chute.
References HopperAngle, HopperExitHeight, HopperExitLength, HopperHeight, HopperLength, and shift.
{
Chute::write(os);
os << HopperExitLength << " " << HopperExitHeight << " " << HopperLength
<< " " << HopperAngle << " " << HopperHeight << " " << shift << " " << endl;
}
bool ChuteWithHopper::align_base [private] |
This is the flag, which sets if the chute bottom is aligned with the hopper, by default it is.
Referenced by constructor(), readNextArgument(), and set_align_base().
bool ChuteWithHopper::centerHopper [protected] |
If theis flag is set, the hopper will be constructed in the xy-center of the domain, and not next to the xmin-domain boundary; by default off.
Referenced by add_hopper(), constructor(), create_inflow_particle(), readNextArgument(), and set_centerHopper().
Mdouble ChuteWithHopper::fill_percent [private] |
This is which percentage of the hopper is used for creating new partices;.
Referenced by constructor(), create_inflow_particle(), and set_HopperFillPercentage().
unsigned int ChuteWithHopper::hopper_dim [private] |
This is the dimension of the hopper, my default it is one dimensional and hence does not have side wall.
Referenced by add_hopper(), constructor(), create_inflow_particle(), and set_hopper_dim().
Mdouble ChuteWithHopper::HopperAngle [protected] |
Angle between the two pieces of the hopper walls.
Referenced by add_hopper(), create_inflow_particle(), print(), read(), readNextArgument(), set_Hopper(), and write().
Mdouble ChuteWithHopper::HopperExitHeight [protected] |
Dimension of the hopper exit in vertical direction.
Referenced by add_hopper(), print(), read(), readNextArgument(), set_Hopper(), and write().
Mdouble ChuteWithHopper::HopperExitLength [protected] |
Dimension of the hopper exit in vertical direction.
Referenced by add_hopper(), create_inflow_particle(), print(), read(), readNextArgument(), set_Hopper(), and write().
Mdouble ChuteWithHopper::HopperHeight [protected] |
Dimension of the hopper in horizontal direction.
Referenced by add_hopper(), create_inflow_particle(), get_MaximumVelocityInducedByGravity(), print(), read(), readNextArgument(), and write().
Mdouble ChuteWithHopper::HopperLength [protected] |
Dimension of the hopper in vertical direction.
Referenced by add_hopper(), create_inflow_particle(), print(), read(), readNextArgument(), set_Hopper(), and write().
Mdouble ChuteWithHopper::lift [private] |
This is the vertical distance the chute is lifted above the plane.
Referenced by add_hopper(), constructor(), create_inflow_particle(), get_lift_hopper(), lift_hopper(), and readNextArgument().
Mdouble ChuteWithHopper::lowerFillHeight [protected] |
Relative height (in [0,1)) above which teh hopper is replenished with new particles.
Referenced by constructor(), readNextArgument(), and set_lowerFillHeight().
Mdouble ChuteWithHopper::shift [protected] |
The x position where the Chute starts (defined as the beginning of the hopper)
Referenced by add_hopper(), constructor(), get_ChuteLength(), get_MaximumVelocityInducedByGravity(), read(), readNextArgument(), set_ChuteLength(), set_shift(), and write().
1.7.6.1
