HGRID_3D Class Reference

This adds on the hierarchical grid code for 3D problems. More...

#include <HGRID_3D.h>

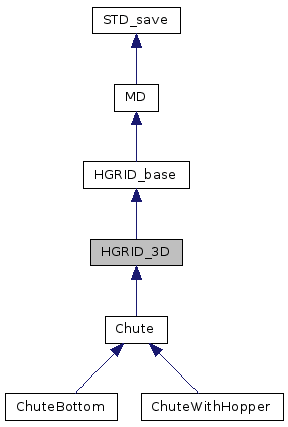

Inheritance diagram for HGRID_3D:
Inheritance graph
[legend]

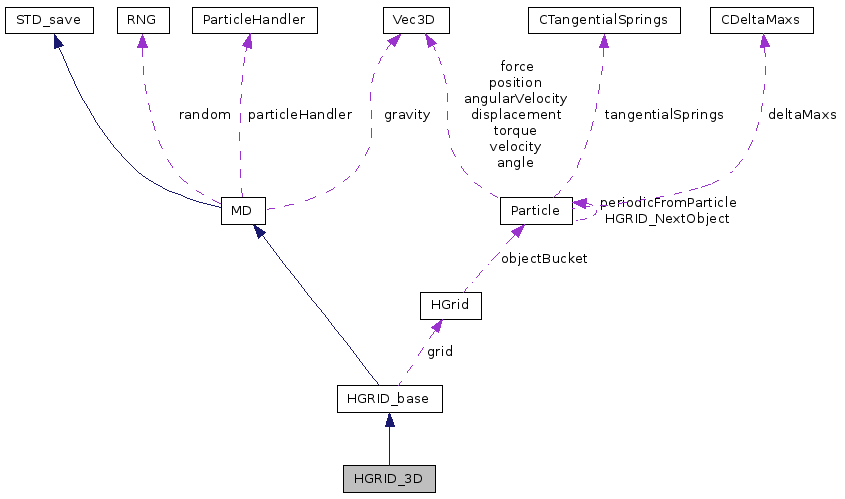

Collaboration diagram for HGRID_3D:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 HGRID_3D ()
 This is the default constructor. All it does is set senible defaults.
 HGRID_3D (MD &other)
 Copy-constructor for creates an HGRID problem from an existing MD problem.
 HGRID_3D (HGRID_base &other)
void constructor ()
 This is the actually constructor it is called do both constructors above.

Protected Member Functions

void HGRID_UpdateParticleInHgrid (Particle *obj)
 This adds a partcile to the Grid, called in the grid setup routies.
void HGRID_RemoveParticleFromHgrid (Particle *obj)
void CheckCell (Cell cell, Particle *obj, HGrid *grid)
 Check collisions for a general cell.
void CheckCell_current (Cell cell, HGrid *grid)
 Checks for a collision in the particles own cell.
void CheckObjAgainstGrid (HGrid *grid, Particle *obj)
 Check if an Particle has a collision in the grid; avoids multiple checks.
void CheckObjAgainstWholeGrid (HGrid *grid, Particle *obj)
 Check if an Particle has a collision in the grid.
bool TestCell (Cell cell, Particle *obj, HGrid *grid)
 Tests obj against all particles in cell similar to CheckCell, but links to TestObject instead of compute_internal_forces.
bool TestObjAgainstGrid (HGrid *grid, Particle *obj)
 Tests obj against all neighbouring particles similar to CheckObjAgainstGrid, but links to TestCell instead of CheckCell.

Detailed Description

This adds on the hierarchical grid code for 3D problems.

Constructor & Destructor Documentation

HGRID_3D::HGRID_3D ( ) [inline]

This is the default constructor. All it does is set senible defaults.

References constructor().

        {
                constructor();
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "HGRID_3D() finished"<<endl;
                #endif
        }
HGRID_3D::HGRID_3D ( MD &  other) [inline]

Copy-constructor for creates an HGRID problem from an existing MD problem.

Bug:
Why is the constructor call commented out. This does not make sence to be Anthony. Dinant: I think this has something to do with somebody copying a 2D MD problem into a 3D Hgrid, then the 3D_Hgrid constructor changes properties of the MD class. Solution in my opinion is to change the HGRID_3D::constructor()
                            : MD(other), HGRID_base(other)
        {
                /*constructor();*/
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "HGRID_3D(MD& other) finished"<<endl;
                #endif
        }
HGRID_3D::HGRID_3D ( HGRID_base &  other) [inline]
                                    : MD(other), HGRID_base(other)
        {
                /*constructor();*/
                #ifdef CONSTUCTOR_OUTPUT
                        cerr << "HGRID_3D(HGRID_base& other) finished"<<endl;
                #endif
        }

Member Function Documentation

void HGRID_3D::CheckCell ( Cell  cell,
Particle *  obj,
HGrid *  grid
) [protected]

Check collisions for a general cell.

Check for collisions with a general cell.

Todo{What is the use of this check?}

References MD::compute_internal_forces(), HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_Level(), Particle::get_HGRID_NextObject(), Particle::get_HGRID_x(), Particle::get_HGRID_y(), Particle::get_HGRID_z(), Cell::l, HGrid::objectBucket, Cell::x, Cell::y, and Cell::z.

Referenced by CheckObjAgainstGrid().

{
        int bucket = grid->ComputeHashBucketIndex(cell);

        if ((obj->get_HGRID_x() == cell.x) && (obj->get_HGRID_y() == cell.y) && (obj->get_HGRID_z() == cell.z) && (obj->get_HGRID_Level() == cell.l)) { return; }

        // Loop through all objects in the bucket to find nearby objects
        Particle *p = grid->objectBucket[bucket];

        while (p!=NULL)
        {
                //Check if the particle realy is in the target cell (i.e. no hashing error has occured)
                if ((p->get_HGRID_x() == cell.x) && (p->get_HGRID_y() == cell.y) && (p->get_HGRID_z() == cell.z) && (p->get_HGRID_Level() == cell.l))
                {
                        compute_internal_forces(obj,p);
                }
                p = p->get_HGRID_NextObject();
        }
}
void HGRID_3D::CheckCell_current ( Cell  cell,
HGrid *  grid
) [protected]

Checks for a collision in the particles own cell.

Checks for collision in the particles own cell.

References HGrid::bucketIsChecked, MD::compute_internal_forces(), HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_NextObject(), and HGrid::objectBucket.

Referenced by CheckObjAgainstGrid().

{
        int bucket = grid->ComputeHashBucketIndex(cell);
        if (grid->bucketIsChecked[bucket]) { return; }
        Particle* p1 = grid->objectBucket[bucket];

        while (p1!=NULL)
        {
                Particle* p2 = p1->get_HGRID_NextObject();
                while (p2!=NULL)
                {
                        compute_internal_forces(p1,p2);
                        p2 = p2->get_HGRID_NextObject();
                }
                p1 = p1->get_HGRID_NextObject();
        }
        grid->bucketIsChecked[bucket] = true;
}
void HGRID_3D::CheckObjAgainstGrid ( HGrid *  grid,
Particle *  obj
) [protected, virtual]

Check if an Particle has a collision in the grid; avoids multiple checks.

Test collisions between object and all objects in hgrid.

Implements HGRID_base.

References CheckCell(), CheckCell_current(), Particle::get_HGRID_Level(), Particle::get_HGRID_x(), Particle::get_HGRID_y(), Particle::get_HGRID_z(), Particle::get_Position(), HGrid::HGRID_MAX_LEVELS, HGrid::inv_size, HGrid::occupiedLevelsMask, Vec3D::X, Vec3D::Y, and Vec3D::Z.

{
        int startLevel          = obj->get_HGRID_Level();
        int occupiedLevelsMask  = grid->occupiedLevelsMask >> obj->get_HGRID_Level();

        int x, y, z;
        Mdouble inv_size;

        for (int level = startLevel; level < grid->HGRID_MAX_LEVELS; occupiedLevelsMask >>= 1, level++)
        {
                // If no objects in rest of grid, stop now
                if (occupiedLevelsMask == 0) break;

                // If no objects at this level, go on to the next level
                if ((occupiedLevelsMask & 1) == 0) continue;

                if (level == startLevel)
                {
                        x = obj->get_HGRID_x();
                        y = obj->get_HGRID_y();
                        z = obj->get_HGRID_z();

                        CheckCell_current(Cell(x, y, z, level), grid);

                        CheckCell(Cell(x+1, y-1, z  , level), obj, grid);
                        CheckCell(Cell(x+1, y,   z  , level), obj, grid);
                        CheckCell(Cell(x+1, y+1, z  , level), obj, grid);

                        CheckCell(Cell(x+1, y-1, z+1, level), obj, grid);
                        CheckCell(Cell(x+1, y,   z+1, level), obj, grid);
                        CheckCell(Cell(x+1, y+1, z+1, level), obj, grid);

                        CheckCell(Cell(x+1, y-1, z-1, level), obj, grid);
                        CheckCell(Cell(x+1, y,   z-1, level), obj, grid);
                        CheckCell(Cell(x+1, y+1, z-1, level), obj, grid);

                        CheckCell(Cell(x  , y+1, z  , level), obj, grid);
                        CheckCell(Cell(x  , y,   z-1, level), obj, grid);
                        CheckCell(Cell(x  , y+1, z-1, level), obj, grid);
                        CheckCell(Cell(x  , y+1, z+1, level), obj, grid);
                }
                 else
                {
                        inv_size = grid->inv_size[level];

                        x = (int)(floor(obj->get_Position().X * inv_size));
                        y = (int)(floor(obj->get_Position().Y * inv_size));
                        z = (int)(floor(obj->get_Position().Z * inv_size));


                        CheckCell(Cell(x, y-1, z, level), obj, grid);
                        CheckCell(Cell(x, y,   z, level), obj, grid);
                        CheckCell(Cell(x, y+1, z, level), obj, grid);

                        CheckCell(Cell(x+1, y-1, z, level), obj, grid);
                        CheckCell(Cell(x+1, y,   z, level), obj, grid);
                        CheckCell(Cell(x+1, y+1, z, level), obj, grid);

                        CheckCell(Cell(x-1, y-1, z, level), obj, grid);
                        CheckCell(Cell(x-1, y,   z, level), obj, grid);
                        CheckCell(Cell(x-1, y+1, z, level), obj, grid);
                        CheckCell(Cell(x, y-1, z-1, level), obj, grid);
                        CheckCell(Cell(x, y,   z-1, level), obj, grid);
                        CheckCell(Cell(x, y+1, z-1, level), obj, grid);

                        CheckCell(Cell(x+1, y-1, z-1, level), obj, grid);
                        CheckCell(Cell(x+1, y,   z-1, level), obj, grid);
                        CheckCell(Cell(x+1, y+1, z-1, level), obj, grid);

                        CheckCell(Cell(x-1, y-1, z-1, level), obj, grid);
                        CheckCell(Cell(x-1, y,   z-1, level), obj, grid);
                        CheckCell(Cell(x-1, y+1, z-1, level), obj, grid);

                        CheckCell(Cell(x, y-1, z+1, level), obj, grid);
                        CheckCell(Cell(x, y,   z+1, level), obj, grid);
                        CheckCell(Cell(x, y+1, z+1, level), obj, grid);

                        CheckCell(Cell(x+1, y-1, z+1, level), obj, grid);
                        CheckCell(Cell(x+1, y,   z+1, level), obj, grid);
                        CheckCell(Cell(x+1, y+1, z+1, level), obj, grid);

                        CheckCell(Cell(x-1, y-1, z+1, level), obj, grid);
                        CheckCell(Cell(x-1, y,   z+1, level), obj, grid);
                        CheckCell(Cell(x-1, y+1, z+1, level), obj, grid);
                }
        }
}
void HGRID_3D::CheckObjAgainstWholeGrid ( HGrid *  grid,
Particle *  obj
) [protected]

Check if an Particle has a collision in the grid.

void HGRID_3D::constructor ( ) [inline]

This is the actually constructor it is called do both constructors above.

Reimplemented from HGRID_base.

Reimplemented in ChuteWithHopper, Chute, and ChuteBottom.

References MD::set_dim(), and MD::set_dim_particle().

Referenced by HGRID_3D().

                          {
                set_dim_particle(3);
                set_dim(3);
        }
void HGRID_3D::HGRID_RemoveParticleFromHgrid ( Particle *  obj) [protected]

References HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_Level(), Particle::get_HGRID_NextObject(), Particle::get_HGRID_x(), Particle::get_HGRID_y(), Particle::get_HGRID_z(), HGRID_base::grid, HGrid::objectBucket, and Particle::set_HGRID_NextObject().

{

        Cell cell(obj->get_HGRID_x(),obj->get_HGRID_y(), obj->get_HGRID_z(), obj->get_HGRID_Level());
        int bucket = grid->ComputeHashBucketIndex(cell);

        Particle* prevObj=grid->objectBucket[bucket];
        if(prevObj==obj)
                grid->objectBucket[bucket]=obj->get_HGRID_NextObject();
        else
        {
                while((prevObj!=NULL)&&(prevObj->get_HGRID_NextObject()!=obj))
                        prevObj=prevObj->get_HGRID_NextObject();
                if(prevObj!=NULL)
                        prevObj->set_HGRID_NextObject(obj->get_HGRID_NextObject());
        }
}
void HGRID_3D::HGRID_UpdateParticleInHgrid ( Particle *  obj) [protected]

This adds a partcile to the Grid, called in the grid setup routies.

Add object to grid square, and remember cell and level numbers, treating level as a third dimension coordinate.

References HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_Level(), Particle::get_Position(), HGRID_base::grid, HGrid::inv_size, HGrid::objectBucket, Particle::set_HGRID_NextObject(), Particle::set_HGRID_x(), Particle::set_HGRID_y(), Particle::set_HGRID_z(), Vec3D::X, Cell::x, Vec3D::Y, Cell::y, Vec3D::Z, and Cell::z.

Referenced by Chute::add_particle().

{
        int level = obj->get_HGRID_Level();
        Mdouble inv_size = grid->inv_size[level];

        Cell cell((int)floor(obj->get_Position().X * inv_size), (int)floor(obj->get_Position().Y * inv_size),(int)floor(obj->get_Position().Z * inv_size), level);
        int bucket = grid->ComputeHashBucketIndex(cell);

        obj->set_HGRID_NextObject(grid->objectBucket[bucket]);
        grid->objectBucket[bucket] = obj;

        obj->set_HGRID_x(cell.x);
        obj->set_HGRID_y(cell.y);
        obj->set_HGRID_z(cell.z);
}
bool HGRID_3D::TestCell ( Cell  cell,
Particle *  obj,
HGrid *  grid
) [protected]

Tests obj against all particles in cell similar to CheckCell, but links to TestObject instead of compute_internal_forces.

References HGrid::ComputeHashBucketIndex(), Particle::get_HGRID_Level(), Particle::get_HGRID_NextObject(), Particle::get_HGRID_x(), Particle::get_HGRID_y(), Particle::get_HGRID_z(), Cell::l, HGrid::objectBucket, HGRID_base::TestObject(), Cell::x, Cell::y, and Cell::z.

Referenced by TestObjAgainstGrid().

{
        bool Test = true;

        // Loop through all objects in the bucket to find nearby objects
        int bucket = grid->ComputeHashBucketIndex(cell);
        Particle *p = grid->objectBucket[bucket];

        while (Test && p!=NULL)
        {
                if ((p->get_HGRID_x() == cell.x) && (p->get_HGRID_y() == cell.y) && (p->get_HGRID_z() == cell.z) && (p->get_HGRID_Level() == cell.l))
                {
                        Test = Test && TestObject(obj,p);
                }
                p = p->get_HGRID_NextObject();
        }

        return Test;
}
bool HGRID_3D::TestObjAgainstGrid ( HGrid *  grid,
Particle *  obj
) [protected]

Tests obj against all neighbouring particles similar to CheckObjAgainstGrid, but links to TestCell instead of CheckCell.

References Particle::get_Position(), HGrid::HGRID_MAX_LEVELS, HGrid::inv_size, HGrid::occupiedLevelsMask, TestCell(), Vec3D::X, Vec3D::Y, and Vec3D::Z.

Referenced by Chute::IsInsertable().

{
        bool Test = true;

        int x, y, z;
        Mdouble inv_size;
        int occupiedLevelsMask = grid->occupiedLevelsMask;

        for (int level = 0; level < grid->HGRID_MAX_LEVELS && Test; occupiedLevelsMask >>= 1, level++)
        {
                // If no objects in rest of grid, stop now
                if (occupiedLevelsMask == 0) break;

                // If no objects at this level, go on to the next level
                if ((occupiedLevelsMask & 1) == 0) continue;

                // Treat level as a third dimension coordinate
                inv_size = grid->inv_size[level];

                x = (int)floor(obj->get_Position().X * inv_size);
                y = (int)floor(obj->get_Position().Y * inv_size);
                z = (int)floor(obj->get_Position().Z * inv_size);

                Test = Test
                                && TestCell(Cell(x  , y  , z  , level), obj, grid)
                                && TestCell(Cell(x  , y-1, z  , level), obj, grid)
                                && TestCell(Cell(x  , y+1, z  , level), obj, grid)
                                && TestCell(Cell(x-1, y  , z  , level), obj, grid)
                                && TestCell(Cell(x+1, y  , z  , level), obj, grid)
                                && TestCell(Cell(x-1, y-1, z  , level), obj, grid)
                                && TestCell(Cell(x-1, y+1, z  , level), obj, grid)
                                && TestCell(Cell(x+1, y-1, z  , level), obj, grid)
                                && TestCell(Cell(x+1, y+1, z  , level), obj, grid)

                                && TestCell(Cell(x  , y  , z-1, level), obj, grid)
                                && TestCell(Cell(x  , y-1, z-1, level), obj, grid)
                                && TestCell(Cell(x  , y+1, z-1, level), obj, grid)
                                && TestCell(Cell(x-1, y  , z-1, level), obj, grid)
                                && TestCell(Cell(x+1, y  , z-1, level), obj, grid)
                                && TestCell(Cell(x-1, y-1, z-1, level), obj, grid)
                                && TestCell(Cell(x-1, y+1, z-1, level), obj, grid)
                                && TestCell(Cell(x+1, y-1, z-1, level), obj, grid)
                                && TestCell(Cell(x+1, y+1, z-1, level), obj, grid)

                                && TestCell(Cell(x  , y  , z+1, level), obj, grid)
                                && TestCell(Cell(x  , y-1, z+1, level), obj, grid)
                                && TestCell(Cell(x  , y+1, z+1, level), obj, grid)
                                && TestCell(Cell(x-1, y  , z+1, level), obj, grid)
                                && TestCell(Cell(x+1, y  , z+1, level), obj, grid)
                                && TestCell(Cell(x-1, y-1, z+1, level), obj, grid)
                                && TestCell(Cell(x-1, y+1, z+1, level), obj, grid)
                                && TestCell(Cell(x+1, y-1, z+1, level), obj, grid)
                                && TestCell(Cell(x+1, y+1, z+1, level), obj, grid);
        } //end for level

        return Test;
}
The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on Wed Apr 17 2013 13:05:02 for HG-MD by   doxygen 1.7.6.1
